1998 Yamaha WARRIOR 350 Front Wheel OEM Parts Diagram

Submodel WARRIOR - YFM350XKC - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

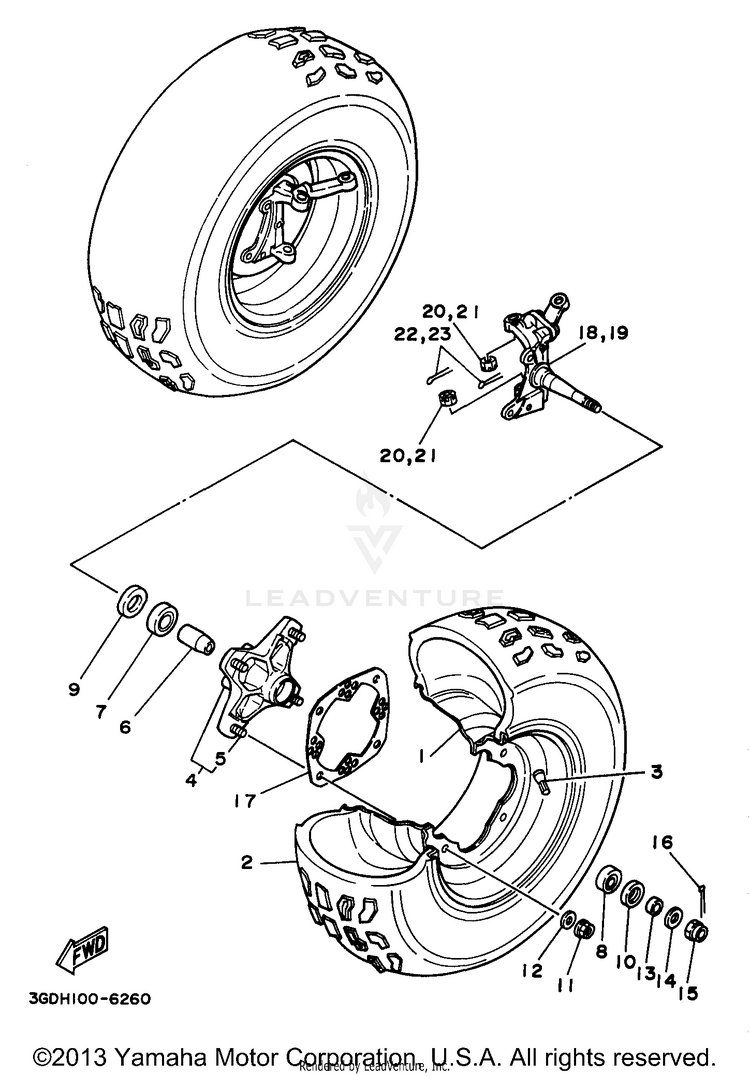

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XK-25180-12-YY

(replaces part #
2XK-25180-01-HM)

WHEEL COMP. | AMS$351.99$278.04Usually ships in 7-10 business days
294107-102Y4-00TIRE (AT22X7-10 KT701) | DUNLOP$81.99$64.72Not Shipping
393900-00030-00

(replaces part #
93900-00022-00)

VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
43GD-25111-01-00HUB, FRONT$210.99$171.03Not Shipping
590114-10007-00BOLT, SERRATION$6.49$5.0610+ In-Stock
61UY-25117-00-00SPACER, BEARING$31.99$24.9510+ In-Stock
793306-00438-00

(replaces part #
93306-00406-00)

BEARING | NTN$41.99$32.7510+ In-Stock
893306-20204-00

(replaces part #
93306-20227-00)

BEARING (B6202Z)$24.99$19.4910+ In-Stock
993105-26026-00OIL SEAL$13.49$10.5210+ In-Stock
1093102-22216-00OIL SEAL$12.49$9.7410+ In-Stock
1195707-10500-00NUT, FLANGE$2.15$1.9410+ In-Stock
1292907-10200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
1390387-150R1-00COLLAR$8.49$6.6210+ In-Stock
1490201-14220-00

(replaces part #
90201-14586-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
1590171-14056-00

(replaces part #
90171-14020-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
1691401-30025-00PIN, COTTER$9.49$7.409 In-Stock
173GD-25127-10-00COVER, PLATE$33.99$26.51Not Shipping
183GD-23501-10-00

(replaces part #
3GD-23501-00-00)

STEERING KNUCKLE ASSY (LEFT)$343.99$268.314 In-Stock
193GD-23502-10-00

(replaces part #
3GD-23502-00-00)

STEERING KNUCKLE ASSY (RIGHT)$699.99$545.992 In-Stock
2090171-10001-00

(replaces part #
90171-10046-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
2190171-10001-00

(replaces part #
90171-10046-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
2291490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
2391490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
