1998 Yamaha WR400F Crankcase OEM Parts Diagram

Submodel WR400F - WR400FK - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

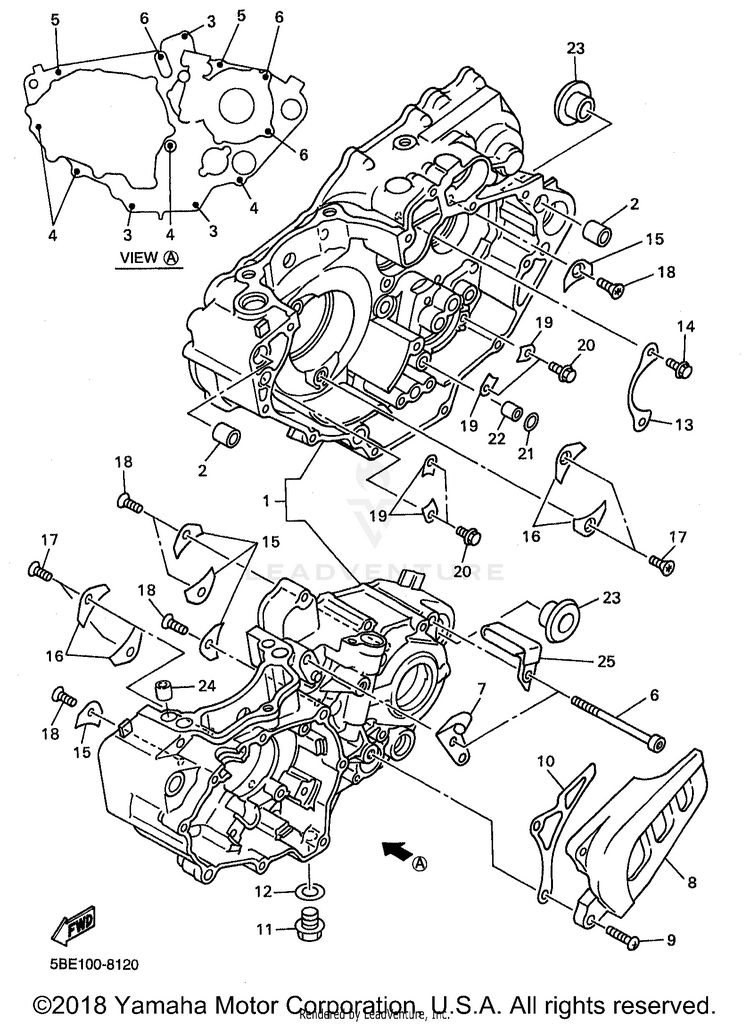

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BE-15100-03-YX

(replaces part #
5BE-15150-00-00)

CRANKCASE ASSY$704.99$549.89Usually ships in 7-10 business days
299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
391317-06040-00BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
491317-06050-00BOLT$4.20$3.6110+ In-Stock
591317-06060-00BOLT$4.05$3.4810+ In-Stock
691317-06075-00BOLT, HEXAGON SOCKET HEAD$6.49$5.066 In-Stock
75BE-15441-00-00HOLDER, CLUTCH CABLE$15.99$13.11Not Shipping
85BE-15421-20-00

(replaces part #
5BE-15421-00-00)

COVER, CRANKCASE 2$43.99$34.313 In-Stock
998517-06025-00

(replaces part #
98507-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
105BE-17466-10-00

(replaces part #
5BE-17466-00-00)

GUIDE, CHAIN$25.99$20.271 In-Stock
1190340-12006-00

(replaces part #
90340-12059-00)

PLUG, STRAIGHT SCREW$4.55$4.2010+ In-Stock
1290430-12213-00GASKET$6.49$5.0610+ In-Stock
134L0-17471-00-00PLATE, COVER$22.99$17.9310+ In-Stock
1495027-06012-00

(replaces part #
90105-06553-00)

BOLT, FLANGE$4.20$3.6110+ In-Stock
154JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
165BE-15383-01-00

(replaces part #
5BE-15383-00-00)

PLATE, BEARING COVER$11.99$9.3510+ In-Stock
1790149-06126-00

(replaces part #
90149-06286-00)

SCREW$10.49$8.1810+ In-Stock
1890151-06052-00

(replaces part #
90149-06326-00)

SCREW$9.49$7.4010+ In-Stock
195DH-18562-00-00PLATE, STOPPER 2$8.49$6.627 In-Stock
2095027-06012-00

(replaces part #
90105-06553-00)

BOLT, FLANGE$4.20$3.6110+ In-Stock
2193210-10197-00O-RING$8.49$6.6210+ In-Stock
2299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
2390387-1712Y-00COLLAR$23.99$18.71Not Shipping
2499530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
2590461-10136-00CLAMP$25.99$20.2710+ In-Stock
