1998 Yamaha XT350 Flasher Light OEM Parts Diagram

Submodel XT350KC - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

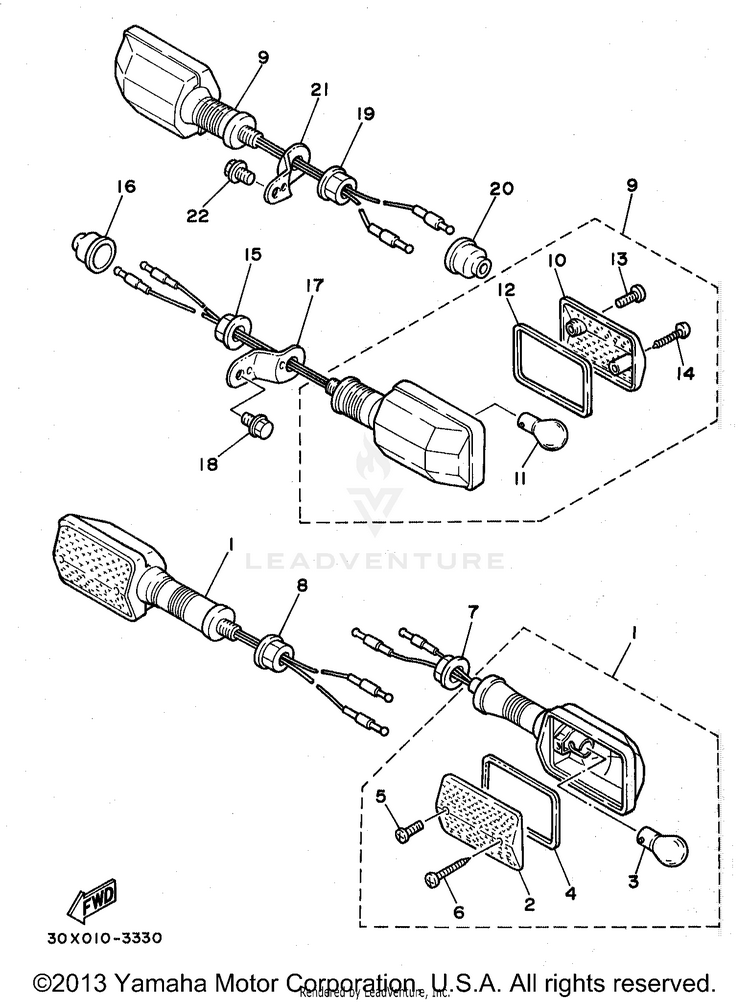

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15Y1-83310-70-00FRONT FLASHER LIGHT ASSEMBLY 1$41.99$34.43Not Shipping
25Y1-83312-00-00LENS, FLASHER$14.49$11.301 In-Stock
3256-83311-70-XX

(replaces part #
256-83311-70-00)

BULB (12V-32CP)$2.35$2.02Not Shipping
45Y1-83313-00-00GASKET, FLASHER LENS$16.49$13.52Usually ships in 7-10 business days
598580-04010-00

(replaces part #
98502-04010-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
697707-40630-00

(replaces part #
97702-40530-00)

SCREW, TAPPING$9.49$7.404 In-Stock
795317-12700-00

(replaces part #
95307-12700-00)

NUT$9.49$7.4010+ In-Stock
895317-12700-00

(replaces part #
95307-12700-00)

NUT$9.49$7.4010+ In-Stock
937A-83330-21-00

(replaces part #
5Y1-83330-70-00)

REAR FLASHER LIGHT ASSEMBLY 1$131.99$102.95Usually ships in 7-10 business days
105Y1-83312-00-00LENS, FLASHER$14.49$11.301 In-Stock
11256-83311-70-XX

(replaces part #
256-83311-70-00)

BULB (12V-32CP)$2.35$2.02Not Shipping
125Y1-83313-00-00GASKET, FLASHER LENS$16.49$13.52Usually ships in 7-10 business days
1398580-04010-00

(replaces part #
98502-04010-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1497707-40630-00

(replaces part #
97702-40530-00)

SCREW, TAPPING$9.49$7.404 In-Stock
1595317-12700-00

(replaces part #
95307-12700-00)

NUT$9.49$7.4010+ In-Stock
1610V-83365-01-00

(replaces part #
10V-83365-00-00)

CAP$4.35$3.742 In-Stock
1710V-83368-00-00STAY, FLASHER 1$14.49$11.88Usually ships in 7-10 business days
1895027-08012-00BOLT, FLANGE$10.49$8.188 In-Stock
1995317-12700-00

(replaces part #
95307-12700-00)

NUT$9.49$7.4010+ In-Stock
2010V-83365-01-00

(replaces part #
10V-83365-00-00)

CAP$4.35$3.742 In-Stock
2110V-83369-00-00STAY, FLASHER 2$15.99$13.11Usually ships in 7-10 business days
2295027-08012-00BOLT, FLANGE$10.49$8.188 In-Stock
