1998 Yamaha YZF750R Shift Cam Shift Fork OEM Parts Diagram

Submodel YZF750RKC - 1998

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM SHIFT FORK

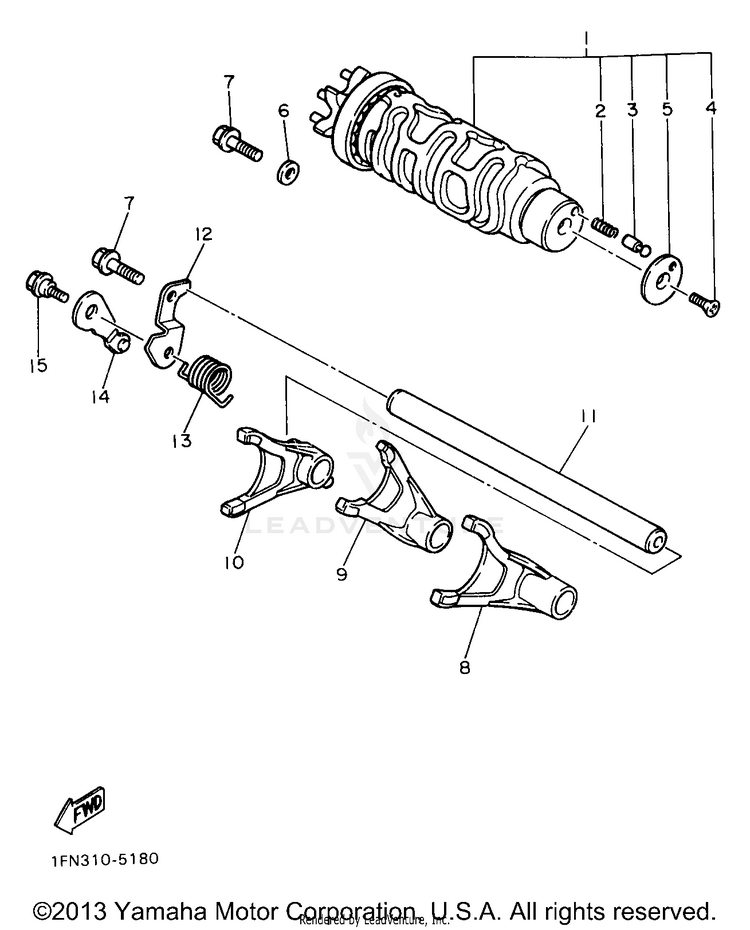

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14FM-18540-02-00

(replaces part #
4FM-18540-00-00)

SHIFT CAM ASSY$400.99$312.77Usually ships in 7-10 business days
290501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
34UN-18542-00-00

(replaces part #
278-18542-00-00)

POINT, NEUTRAL$9.49$7.4010+ In-Stock
498707-05012-00SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
5278-18566-00-00PLATE, SIDE 2$6.99$6.29Usually ships in 7-10 business days
690201-06045-00

(replaces part #
90201-06643-00)

WASHER, PLATE$9.49$7.409 In-Stock
795817-06016-00BOLT, FLANGE$1.95$1.6810+ In-Stock
84FM-18511-00-00FORK, SHIFT 1$81.99$63.95Usually ships in 7-10 business days
94FM-18512-00-00FORK, SHIFT 2$75.99$59.27Usually ships in 7-10 business days
104FM-18513-00-00FORK, SHIFT 3$77.99$60.83Usually ships in 7-10 business days
114SV-18531-00-00

(replaces part #
4BH-18531-00-00)

BAR, SHIFT FORK GUIDE 1$30.99$25.41Usually ships in 7-10 business days
121AE-18536-00-00STOPPER, SHIFT BAR$16.99$13.93Usually ships in 7-10 business days
1390508-26681-00SPRING, TORSION$2.80$2.52Usually ships in 7-10 business days
1436Y-18140-00-00STOPPER LEVER ASSY$25.99$21.31Usually ships in 7-10 business days
1590109-06036-00

(replaces part #
90109-063F8-00)

BOLT$10.49$8.187 In-Stock
