1999 Yamaha BEAR TRACKER Front Suspension Wheel OEM Parts Diagram

Submodel BEAR TRACKER 2WD - YFM250XLC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

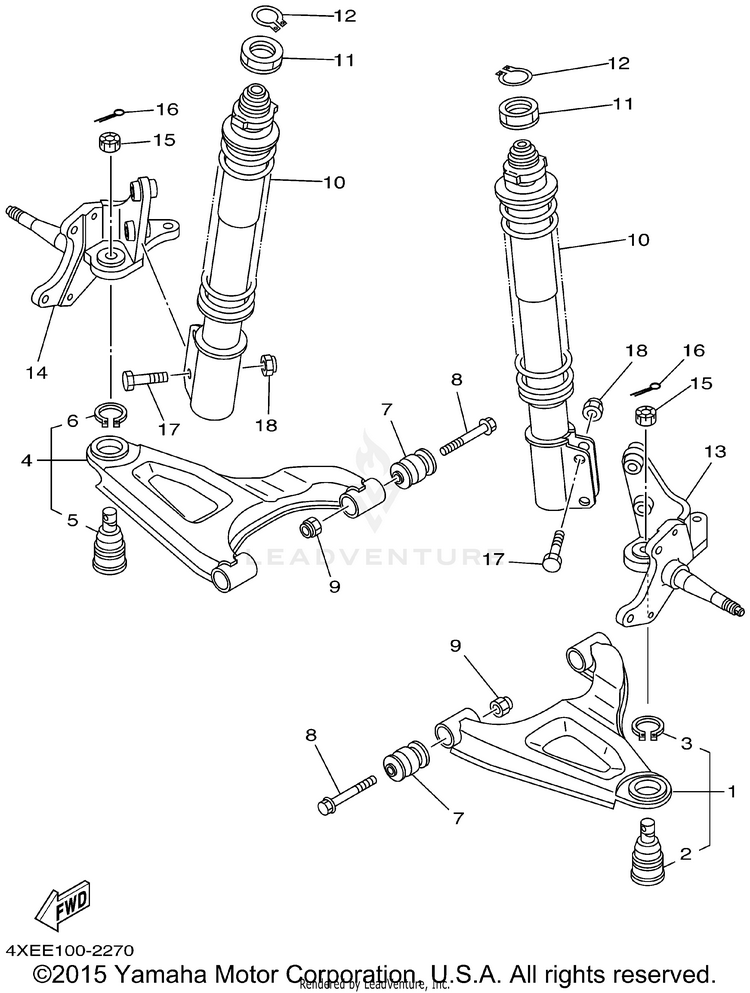

FRONT SUSPENSION WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XE-F3570-10-00FRONT LOWER ARM COMP. (LEFT)$158.99$124.01Not Shipping
21P0-23549-00-00

(replaces part #
4XE-F3549-00-00)

BALL JOINT 1$103.99$81.11Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$40.53$38.504 In-Stock
393410-32075-00

(replaces part #
93410-32826-00)

CIRCLIP$10.49$8.1810+ In-Stock
44XE-F3580-10-00FRONT LOWER ARM COMP. (RIGHT)$158.99$124.01Usually ships in 7-10 business days
51P0-23549-00-00

(replaces part #
4XE-F3549-00-00)

BALL JOINT 1$103.99$81.11Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$40.53$38.504 In-Stock
693410-32075-00

(replaces part #
93410-32826-00)

CIRCLIP$10.49$8.1810+ In-Stock
72HR-23526-00-00BUSH$22.99$17.9310+ In-Stock
890105-10267-00

(replaces part #
90105-10890-00)

BOLT, FLANGE$10.49$8.188 In-Stock
990185-10012-00

(replaces part #
90185-10844-00)

NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
104XE-F3350-10-00

(replaces part #
4XE-F3350-00-00)

SHOCK ABSORBER ASSY$271.99$212.15Usually ships in 7-10 business days
1190179-35002-00

(replaces part #
90179-35625-00)

NUT$11.49$9.42Usually ships in 7-10 business days
1293410-32075-00

(replaces part #
93410-32826-00)

CIRCLIP$10.49$8.1810+ In-Stock
134XE-F3501-00-00STEERING, KNUCKLE ASSEMBLY (LEF$163.99$127.91Usually ships in 7-10 business days
144XE-F3502-00-00STEERING, KNUCKLE ASSEMBLY (RIG$163.99$127.91Usually ships in 7-10 business days
1590171-12001-00

(replaces part #
90171-12816-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
1691490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
1790101-12811-00

(replaces part #
90101-12882-00)

BOLT$7.99$7.19Usually ships in 7-10 business days
1895612-12100-00

(replaces part #
9561P-12100-00)

NUT, U$6.49$5.0610+ In-Stock
