1999 Yamaha FZR600 Flasher Light OEM Parts Diagram

Submodel FZR600RLC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

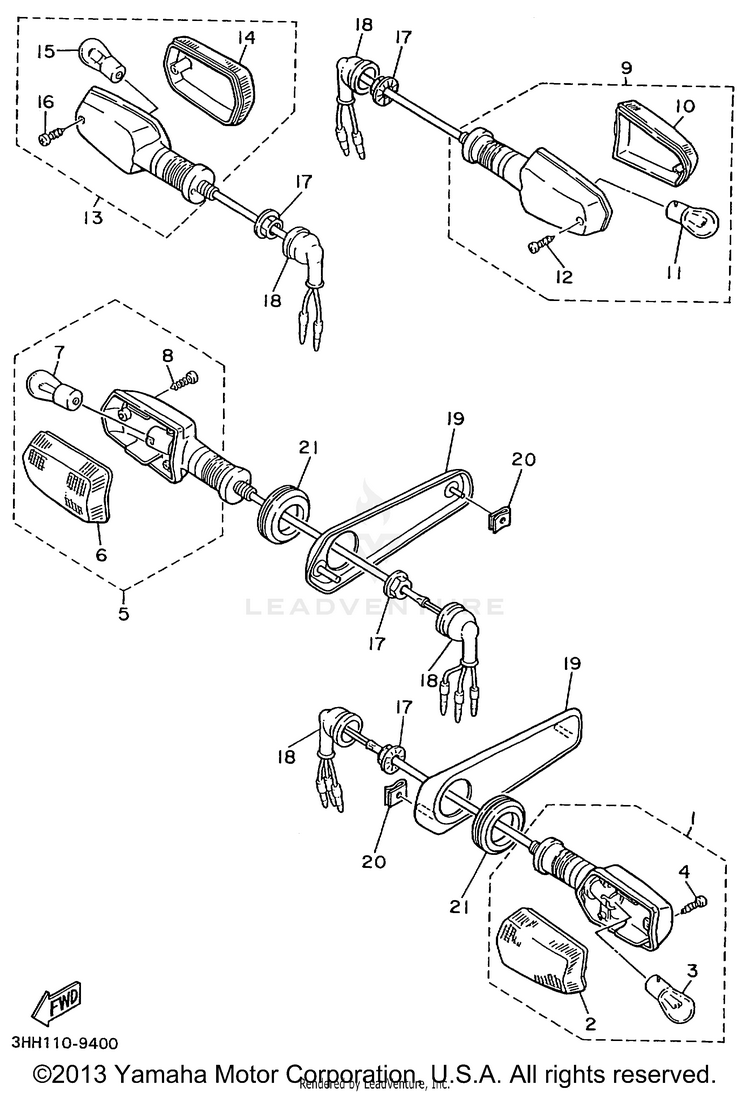

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UF-83310-00-00FRONT FLASHER LIGHT ASSY 1$146.99$114.65Usually ships in 7-10 business days
251L-83332-01-00

(replaces part #
51L-83332-00-00)

LENS, FLASHER$12.99$10.135 In-Stock
3256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
497707-40520-00

(replaces part #
97707-40620-00)

SCREW, TAPPING$10.49$8.186 In-Stock
51UF-83320-00-00FRONT FLASHER LIGHT ASSY 2$146.99$114.65Usually ships in 7-10 business days
651L-83342-01-00

(replaces part #
51L-83342-00-00)

LENS, FLASHER 2$12.99$10.137 In-Stock
7256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
897707-40520-00

(replaces part #
97707-40620-00)

SCREW, TAPPING$10.49$8.186 In-Stock
91UF-83330-00-00REAR FLASHER LIGHT ASSY 1$140.99$109.973 In-Stock
1051L-83342-01-00

(replaces part #
51L-83342-00-00)

LENS, FLASHER 2$12.99$10.137 In-Stock
11256-83311-70-XX

(replaces part #
256-83311-70-00)

BULB (12V-32CP)$2.35$2.02Not Shipping
1297707-40520-00

(replaces part #
97706-40620-00)

SCREW, TAPPING$10.49$8.186 In-Stock
131UF-83340-00-00REAR FLASHER LIGHT ASSY 2$145.99$113.872 In-Stock
1451L-83332-01-00

(replaces part #
51L-83332-00-00)

LENS, FLASHER$12.99$10.135 In-Stock
15256-83311-70-XX

(replaces part #
256-83311-70-00)

BULB (12V-32CP)$2.35$2.02Not Shipping
1697707-40520-00

(replaces part #
97706-40620-00)

SCREW, TAPPING$10.49$8.186 In-Stock
1790179-12588-00

(replaces part #
95707-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
1818G-83365-00-00CAP$21.99$17.153 In-Stock
192MA-28365-41-00COVER | BLACK$28.99$23.77Usually ships in 7-10 business days
2090183-04045-00NUT, SPRING$0.55$0.50Usually ships in 7-10 business days
2190480-35526-00

(replaces part #
90480-35394-00)

GROMMET$5.49$4.94Usually ships in 7-10 business days
