1999 Yamaha TTR250 Handle Switch Lever OEM Parts Diagram

Submodel TTR250 - TTR250LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

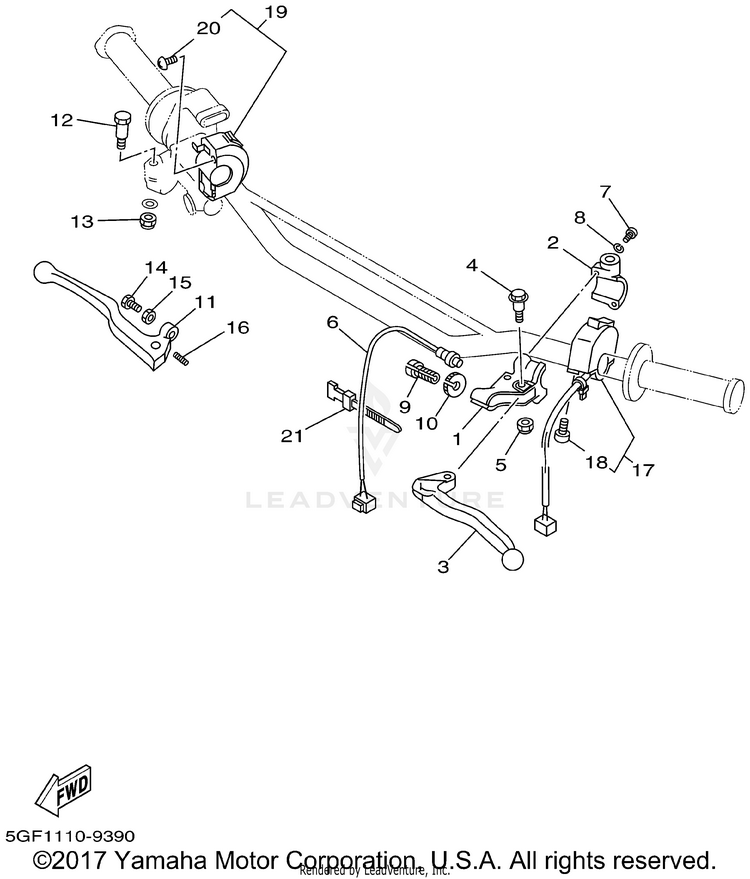

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
233G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
34GY-83912-00-00LEVER 1$31.99$24.9510+ In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
64GY-82917-01-00SWITCH$49.99$38.992 In-Stock
798517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
892907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1155Y-83922-02-00

(replaces part #
55Y-83922-00-00)

LEVER 2$41.99$32.756 In-Stock
1290109-062A8-00BOLT$8.49$6.622 In-Stock
1395617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1490149-06131-00SCREW$9.49$7.4010+ In-Stock
1590170-06010-00NUT$9.49$7.404 In-Stock
1690501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
175GF-83976-00-00SWITCH, HANDLE 1$95.99$74.87Usually ships in 7-10 business days
1898507-04014-00SCREW, PAN HEAD$2.00$1.7210+ In-Stock
193LD-83975-11-00

(replaces part #
4GY-83975-00-00)

SWITCH, HANDLE 2$185.99$145.071 In-Stock
2098507-05018-00

(replaces part #
98506-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
21437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
