FRONT BRAKE CALIPER

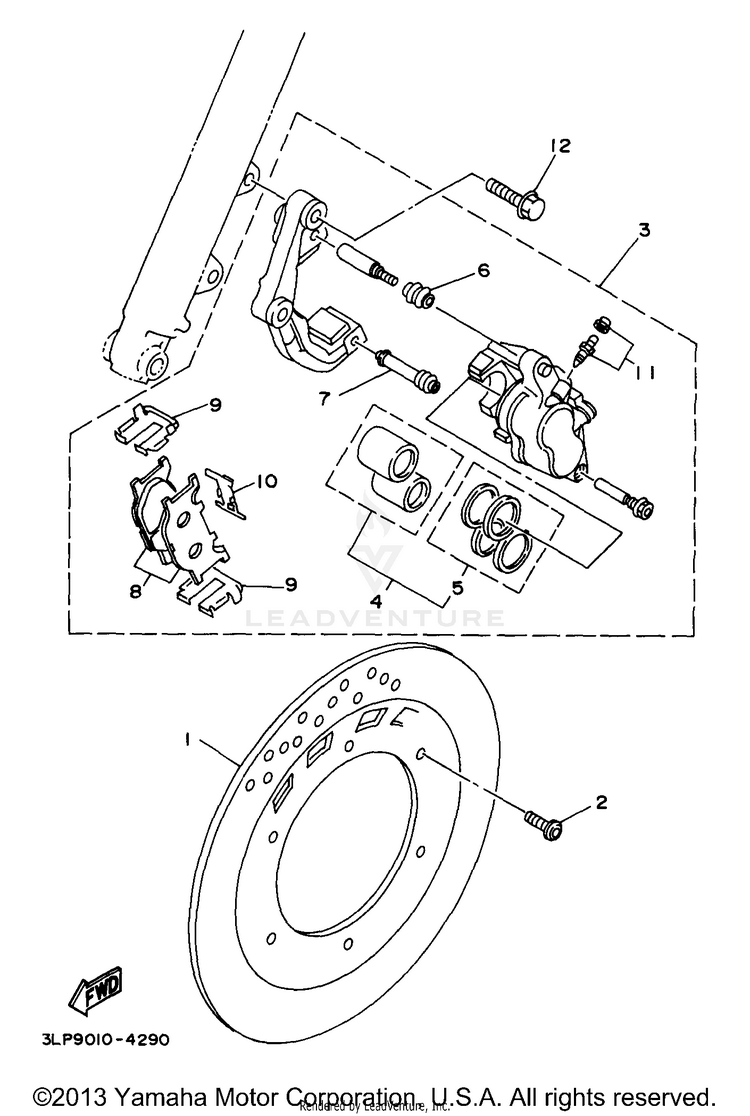

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13LP-2582T-00-00DISC, BRAKE (LEFT)$399.99$311.99Usually ships in 7-10 business days
290111-08053-00

(replaces part #
90109-081F0-00)

BOLT,HEX. SOCKET BUT$10.49$8.6010+ In-Stock
34HM-2580T-00-00CALIPER ASSY (LEFT)$365.99$304.00Usually ships in 7-10 business days
44HC-W0057-50-00

(replaces part #
4FU-W0057-50-00)

PISTON ASSY, CALIPER$157.99$123.23Usually ships in 7-10 business days
54HC-25803-50-00

(replaces part #
4FU-W0047-50-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
73YX-25937-00-00BOOT 2$33.99$27.87Usually ships in 7-10 business days
84HM-W0045-00-00BRAKE PAD KIT$53.99$42.11Usually ships in 7-10 business days
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1115B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
1290105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
