2000 Yamaha GRIZZLY 600 4x4 Front Master Cylinder OEM Parts Diagram

Submodel GRIZZLY - YFM600FMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

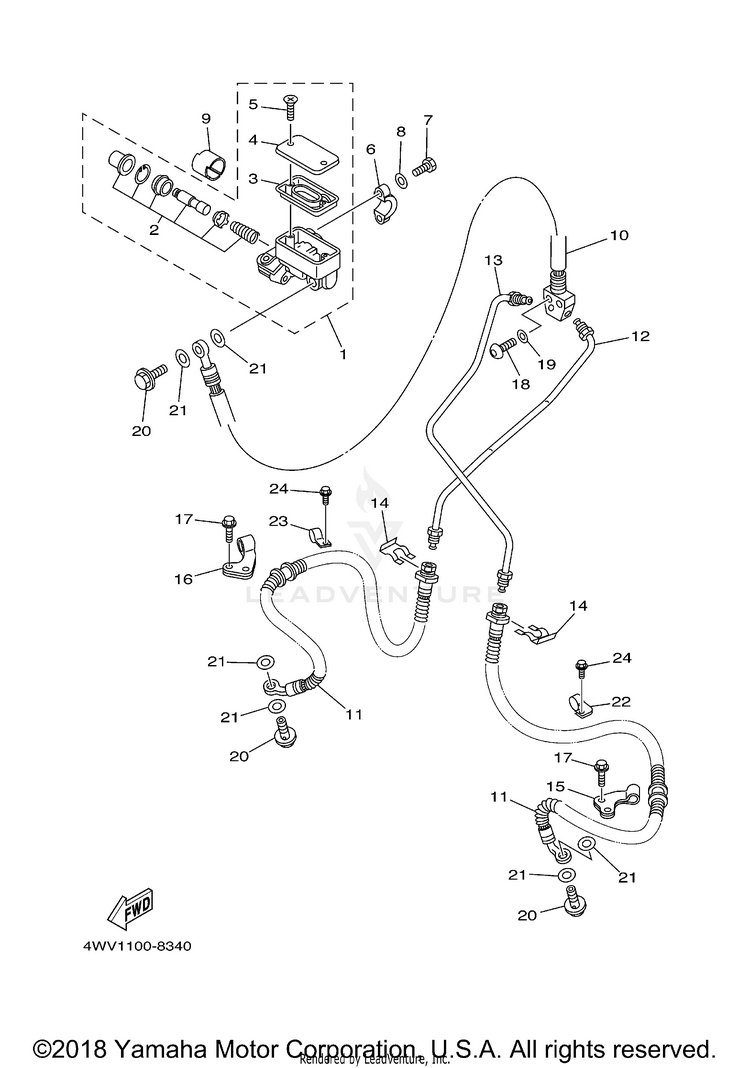

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14WV-25870-00-00MASTER CYLINDER SUB ASSY$222.99$173.93Not Shipping
24K0-W0041-50-00CYLINDER KIT, MASTER$99.99$77.992 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.076 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
656A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
797017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
892907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
91UY-26259-00-00COLLAR$21.99$17.152 In-Stock
104WV-25872-00-00HOSE, BRAKE 1$84.99$66.29Usually ships in 7-10 business days
114WV-25873-01-00

(replaces part #
4WV-25873-00-00)

HOSE, BRAKE 2$80.99$63.17Not Shipping
124WV-25871-00-00PIPE, BRAKE$12.49$10.24Usually ships in 7-10 business days
134WV-25882-00-00PIPE, BRAKE 2$13.99$11.47Usually ships in 7-10 business days
142GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
154GB-25875-00-00HOLDER, BRAKE HOSE 1$27.99$22.95Usually ships in 7-10 business days
164GB-25876-00-00HOLDER, BRAKE HOSE 2$10.49$8.60Usually ships in 7-10 business days
1795817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1897017-08030-00

(replaces part #
97027-08030-00)

BOLT$10.49$8.182 In-Stock
1992907-08600-00WASHER, PLATE$3.25$2.80
2090401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
224WV-25875-00-00HOLDER, BRAKE HOSE 1$8.49$7.64Usually ships in 7-10 business days
234WV-25876-00-00HOLDER, BRAKE HOSE 2$8.49$7.64Usually ships in 7-10 business days
2495817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
