2000 Yamaha Road Star XV1600A Steering OEM Parts Diagram

Submodel ROAD STAR - XV1600ALMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

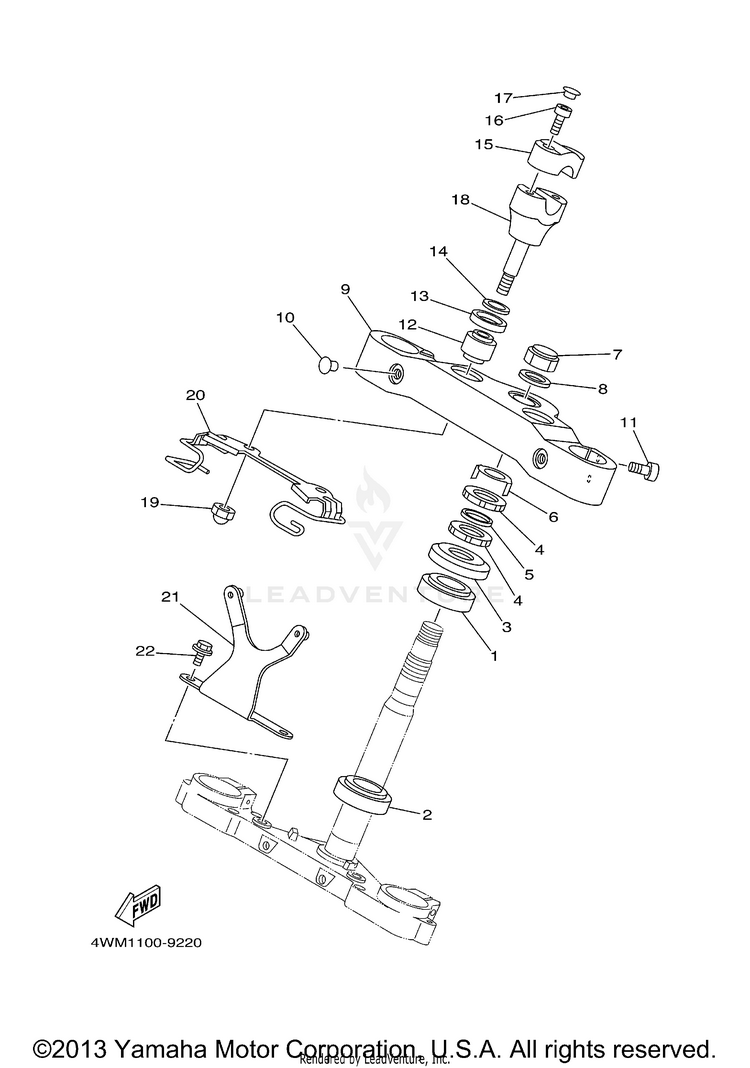

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00001-00BEARING$63.99$49.913 In-Stock
293332-00008-00BEARING$73.99$57.714 In-Stock
31W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
490179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
590202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
626H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
790176-22081-00NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
890201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
94WM-W2341-00-00

(replaces part #
4WM-23435-00-00)

CROWN, HANDLE$349.99$290.43Usually ships in 7-10 business days
104WM-23497-00-00GROMMET$17.49$14.34Usually ships in 7-10 business days
1191314-06030-00BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
121NU-22216-00-00BUSH, REAR SHOCK ABSORBER$41.99$34.43Usually ships in 7-10 business days
133DM-23445-00-00DAMPER$8.49$6.621 In-Stock
1490201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
154VR-23441-00-00HOLDER, HANDLE UPPER$77.99$60.83Usually ships in 7-10 business days
1691314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
1790338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
184VR-23442-01-00

(replaces part #
4VR-23442-00-00)

HOLDER, HANDLE LOWER$120.99$94.37Usually ships in 7-10 business days
1990176-12052-00NUT, CROWN$13.49$11.06Usually ships in 7-10 business days
204WM-23389-00-00GUIDE, CABLE$60.99$47.57Usually ships in 7-10 business days
215VN-23174-00-00

(replaces part #
4WM-23174-00-00)

STAY, HEADLIGHT$38.99$31.97Usually ships in 7-10 business days
2295817-06016-00

(replaces part #
90105-06010-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
