2000 Yamaha RT100 Stand - Footrest OEM Parts Diagram

Submodel RT100 - RT100M - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND - FOOTREST

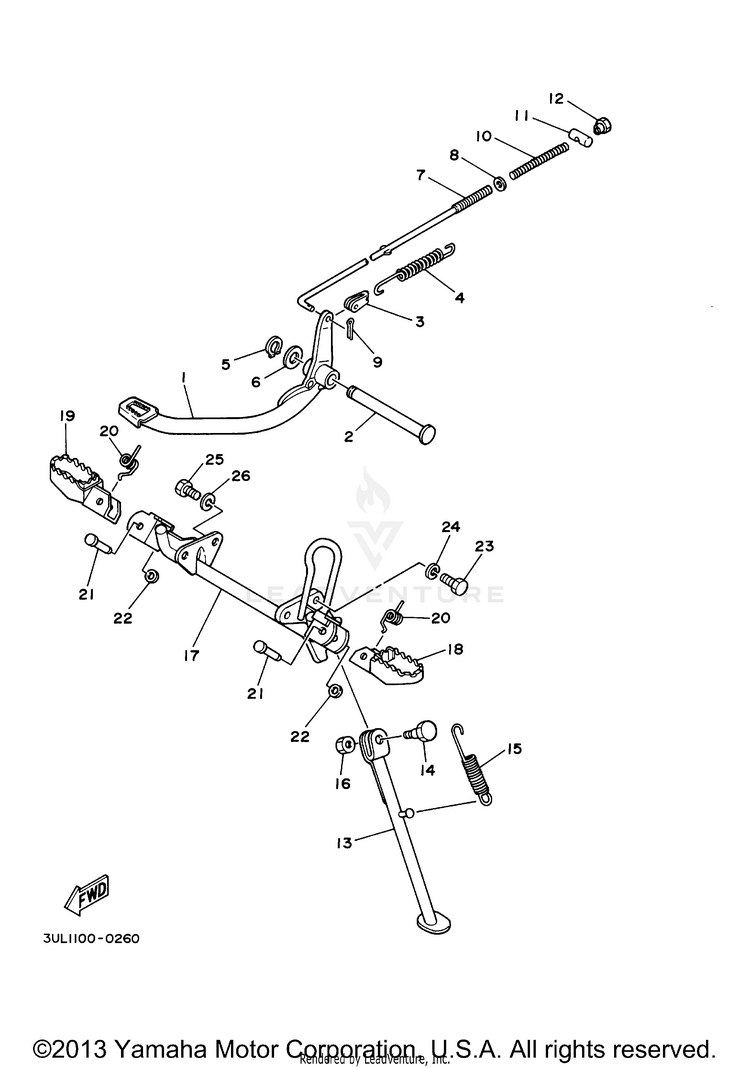

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1538-27211-01-00PEDAL, BRAKE$50.99$39.77Not Shipping
23UL-27212-00-00SHAFT, BRAKE PEDAL$33.99$27.87Not Shipping
31T9-27254-00-00HOOK$6.99$6.29Not Shipping
490506-20157-00SPRING, TENSION$6.49$5.84Not Shipping
599009-14400-00CIRCLIP$3.59$3.091 In-Stock
690201-14215-00WASHER, PLATE$11.49$8.963 In-Stock
71T9-27231-00-00ROD, BRAKE$16.99$13.93Not Shipping
892907-06200-00WASHER$9.49$7.4010+ In-Stock
991490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
1090501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1190249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
1290179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
13367-27311-02-R4STAND, SIDE | HPB$47.99$39.35Not Shipping
1490109-08031-00BOLT$9.49$7.403 In-Stock
1590506-25047-00SPRING, TENSION$10.49$8.182 In-Stock
1695317-08700-00

(replaces part #
95307-08700-00)

NUT$10.49$8.185 In-Stock
171T9-27451-02-R4FOOTREST | HPB$55.99$43.67Not Shipping
1822W-27411-01-90

(replaces part #
3R1-27411-00-90)

FOOTREST 1 | ZK$35.99$28.071 In-Stock
1922W-27421-01-90

(replaces part #
3R1-27421-00-90)

FOOTREST 2 (3R1-27421-00) | ZK$35.99$28.076 In-Stock
2090508-20023-00SPRING, TORSION$4.25$3.6610+ In-Stock
2190243-08006-00PIN$13.49$10.526 In-Stock
2290201-06042-00WASHER, PLATE$10.49$8.185 In-Stock
2397017-08020-00

(replaces part #
97027-08020-00)

BOLT$10.49$8.1810+ In-Stock
2492907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
2597017-08016-00

(replaces part #
97027-08016-00)

BOLT$9.49$7.408 In-Stock
2692907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
