2000 Yamaha TTR225 Handle Switch Lever OEM Parts Diagram

Submodel TTR225 - TTR225MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

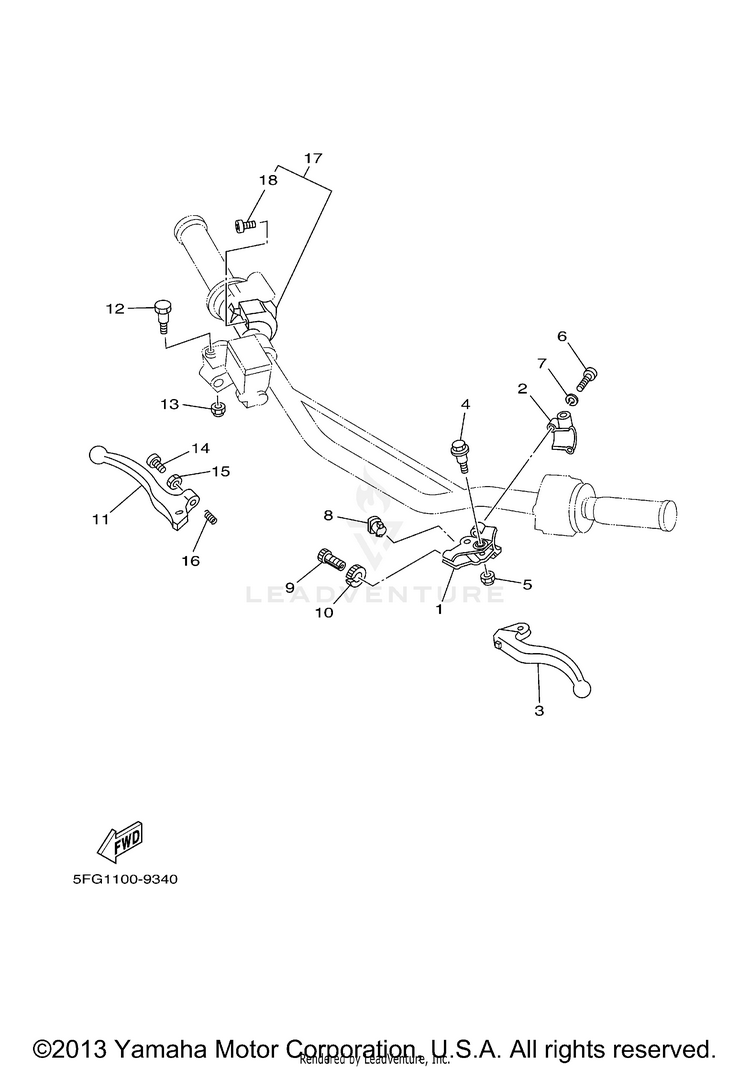

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12TY-H2911-00-00HOLDER, LEVER 1$25.99$20.277 In-Stock
22TY-H2915-02-00

(replaces part #
2TY-H2915-01-00)

HOLDER, LEVER 1$19.99$16.39Usually ships in 7-10 business days
34AN-H3912-00-00LEVER 1$21.99$17.154 In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
698517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00

(replaces part #
9290M-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
83Y6-82917-00-00

(replaces part #
5U0-82917-00-00)

SWITCH$16.49$13.52Usually ships in 7-10 business days
990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
114AN-H3922-00-00LEVER 2$19.99$15.59Not Shipping
1290109-06577-00BOLT$6.49$5.0610+ In-Stock
1395617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1490154-06802-00SCREW, BINDING$2.30$2.07Usually ships in 7-10 business days
1590170-06010-00NUT$9.49$7.404 In-Stock
1690501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
174DW-83975-11-00

(replaces part #
4DW-83975-00-00)

SWITCH, HANDLE 2$132.99$103.73Usually ships in 7-10 business days
1898507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
