2000 Yamaha TTR250 Crankcase OEM Parts Diagram

Submodel TTR250 - TTR250MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

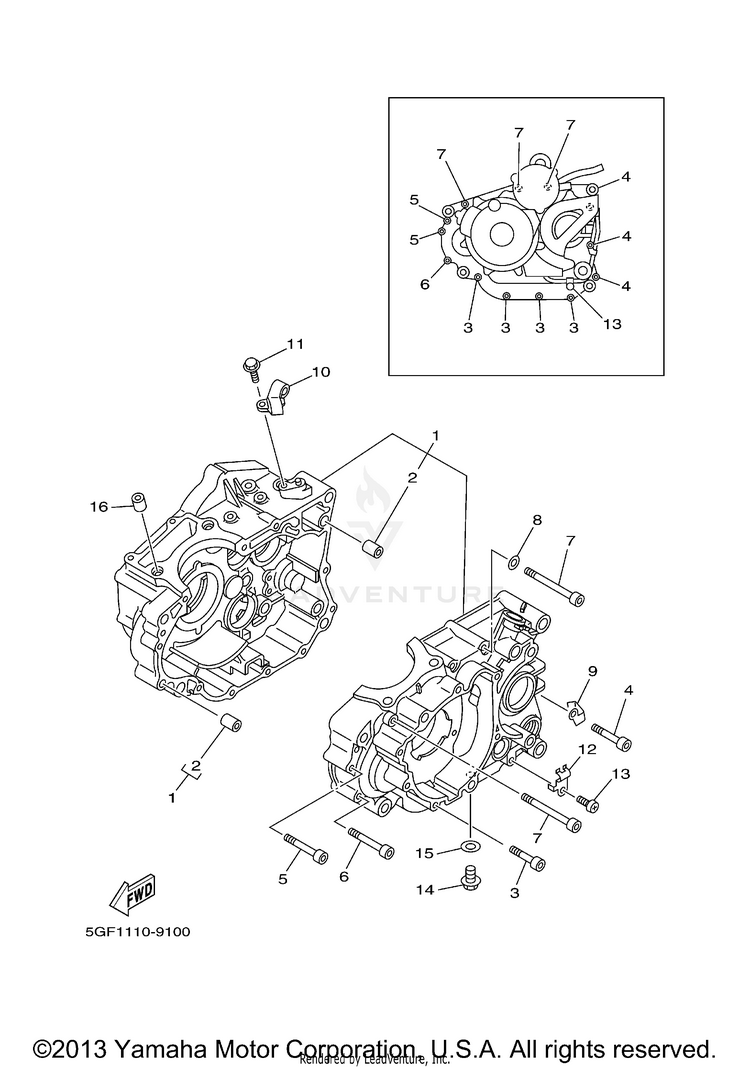

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14RR-15100-02-00CRANKCASE ASSY$1,076.99$901.90Usually ships in 7-10 business days
299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
391317-06040-00BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
491317-06045-00BOLT$5.49$4.2810+ In-Stock
591317-06050-00BOLT$4.20$3.6110+ In-Stock
691317-06055-00BOLT$4.50$3.8710+ In-Stock
791317-06070-00BOLT, HEX. SOCKET HEAD$5.49$4.2810+ In-Stock
890430-06014-00GASKET$8.99$7.0110+ In-Stock
990462-08225-00CLAMP$9.49$8.54Usually ships in 7-10 business days
104GY-15441-00-00HOLDER, CLUTCH CABLE$20.99$17.21Usually ships in 7-10 business days
1195817-06016-00BOLT, FLANGE$1.95$1.6810+ In-Stock
1290462-10215-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1398507-06010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
1490340-12006-00

(replaces part #
90340-12059-00)

PLUG, STRAIGHT SCREW$4.55$4.2010+ In-Stock
1590430-12213-00GASKET$6.49$5.0610+ In-Stock
1699530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
