2000 Yamaha TW200 Intake OEM Parts Diagram

Submodel TRAILWAY - TW200MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

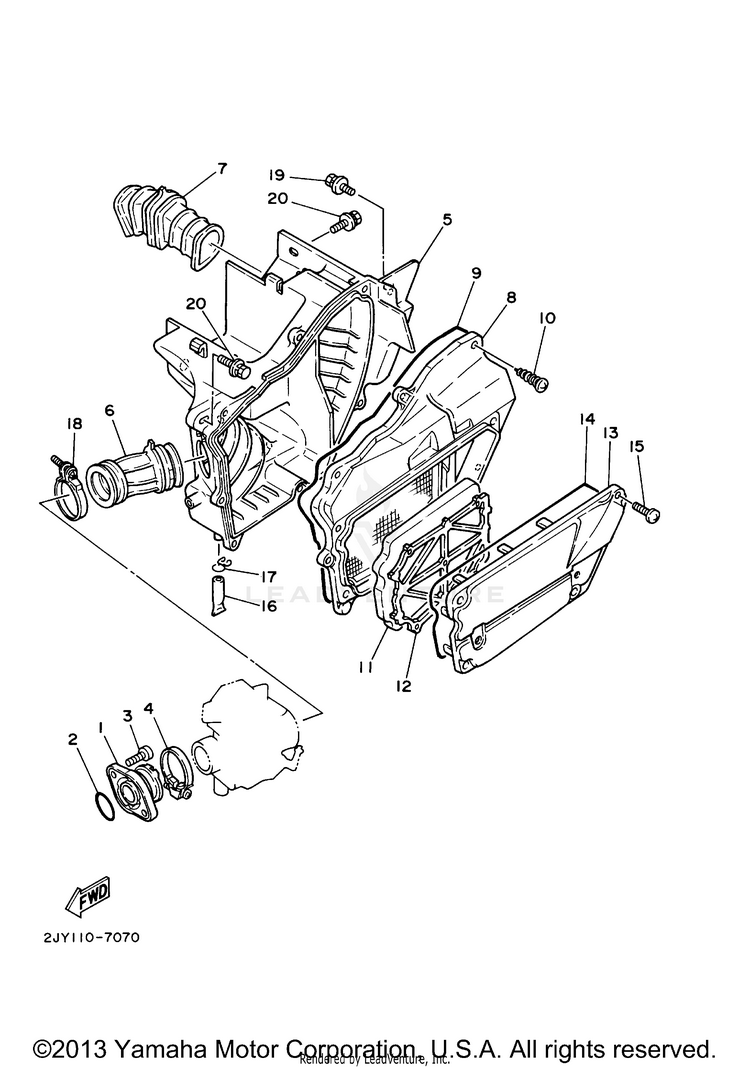

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-13586-00-00JOINT, CARBURETOR 1$139.99$109.191 In-Stock
293210-35537-00O-RING$15.49$12.0810+ In-Stock
391317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
44TR-13474-02-00

(replaces part #
1HX-13575-00-00)

BAND$12.99$10.1310+ In-Stock
52JX-14411-02-00

(replaces part #
2JX-14411-00-00)

CASE, AIR CLEANER 1$49.99$40.99Usually ships in 7-10 business days
62JX-14453-00-00JOINT, AIR CLEANER 1$60.99$47.578 In-Stock
72JX-14437-00-00DUCT$28.99$23.77Not Shipping
82JX-14412-00-00CAP, CLEANER CASE 1$157.99$123.23Usually ships in 7-10 business days
91VJ-14462-00-00

(replaces part #
2JX-14452-00-00)

SEAL$19.99$15.5910+ In-Stock
1097707-50620-00

(replaces part #
97707-50520-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
112JX-14451-00-00ELEMENT, AIR CLEANER$10.49$8.18
122JX-14458-00-00GUIDE$38.99$30.413 In-Stock
132JX-14422-00-00CAP, CLEANER CASE 2$91.99$71.751 In-Stock
141VJ-14462-00-00

(replaces part #
5U8-14457-00-00)

SEAL$19.99$15.5910+ In-Stock
1590154-05005-00SCREW, BINDING$5.49$4.2810+ In-Stock
1634X-1443E-00-00PIPE, DRAIN$8.49$7.64Usually ships in 7-10 business days
1790467-11106-00CLIP$4.05$3.4810+ In-Stock
1890450-47002-00

(replaces part #
90460-46206-00)

HOSE CLAMP ASSY$9.49$7.4010+ In-Stock
1990119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
2090119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
