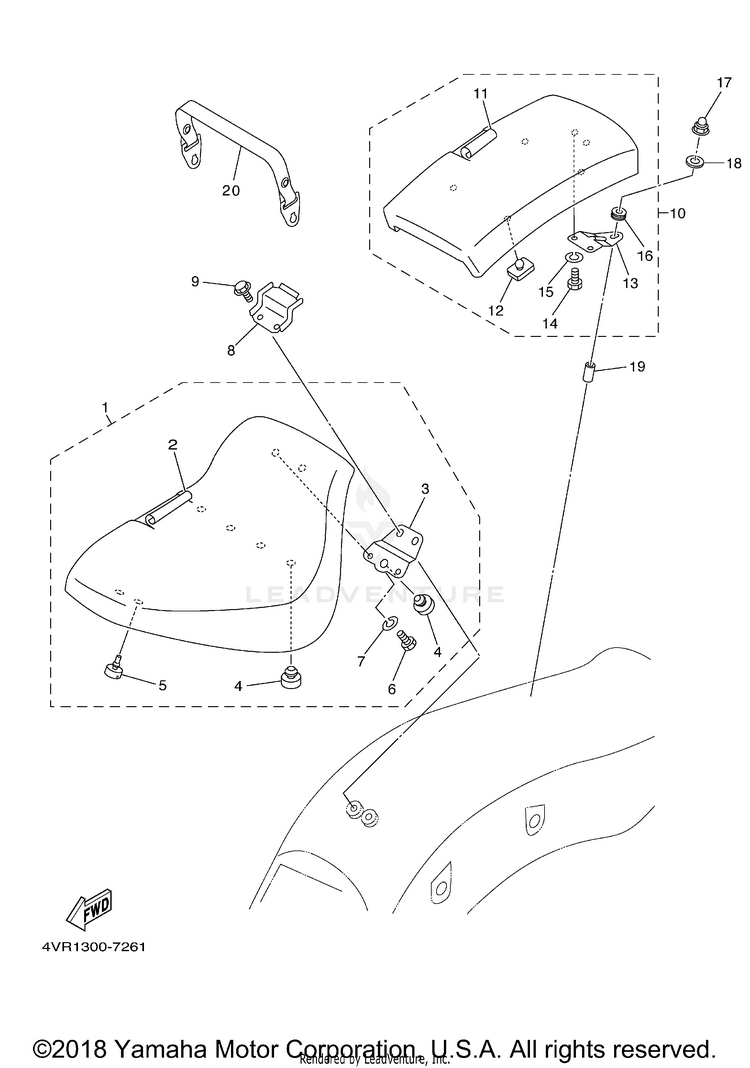

2000 Yamaha V-Star 650 Custom Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4VR-24710-10-00	SINGLE SEAT ASSY	$169.99	$132.59	Usually ships in 7-10 business days
2	4VR-24711-00-00	COVER, SINGLE SEAT	$103.99	$81.11	Usually ships in 7-10 business days
3	4TR-2475H-00-00	BRACKET, SEAT LEVER 1	$11.99	$9.83	Usually ships in 7-10 business days
4	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
5	35T-24724-00-00	DAMPER, SEAT	$15.49	$12.70	Usually ships in 7-10 business days
6	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
7	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
8	4TR-2475K-00-00	BRACKET 3	$8.49	$7.64	Usually ships in 7-10 business days
9	91317-06025-00	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.28	10+ In-Stock
10	4TR-24750-22-00 (replaces part # 4TR-24750-21-00)	TANDEM SEAT ASSY	$198.99	$155.21	Usually ships in 7-10 business days
11	4TR-24751-00-00	COVER, TANDEM SEAT	$60.99	$47.57	Usually ships in 7-10 business days
12	509-24724-00-00	DAMPER, SEAT	$11.99	$9.35	3 In-Stock
13	5FB-2475J-01-00	BRACKET, SEAT LEVER 2	$13.49	$11.06	Usually ships in 7-10 business days
14	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
15	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
16	5YS-24742-00-00	GROMMET	$2.50	$2.15	1 In-Stock
17	90176-08001-00	NUT, CROWN	$9.49	$8.54	Usually ships in 7-10 business days
18	90201-08042-00	WASHER, PLATE	$9.49	$8.54	1 In-Stock
19	90387-081M9-00	COLLAR	$2.90	$2.61	Usually ships in 7-10 business days
20	4TR-24720-01-00 (replaces part # 4TR-24720-00-00)	Seat Band Assy	$50.99	$39.77	Usually ships in 7-10 business days
