2000 Yamaha V-Star Custom XVS1100 Front Master Cylinder OEM Parts Diagram

Submodel V-STAR 1100 CUSTOM - XVS1100MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

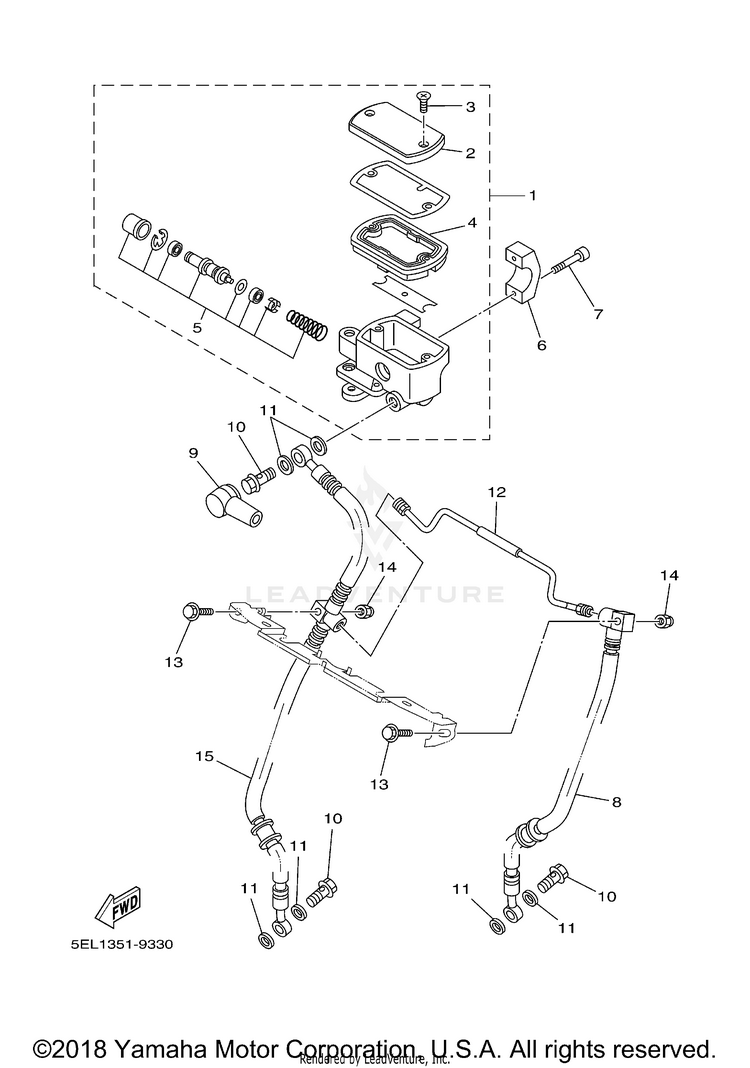

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-11-00

(replaces part #
4TR-25870-01-00)

MASTER CYLINDER SUB ASSY$334.99$261.29Usually ships in 7-10 business days
24TR-25852-01-00

(replaces part #
4TR-25852-00-00)

CAP, RESERVOIR$70.99$55.37Usually ships in 7-10 business days
398780-04012-00

(replaces part #
98704-04012-00)

SCREW, FLAT HEAD$3.10$2.79Usually ships in 7-10 business days
44BH-25854-02-00DIAPHRAGM, RESERVOIR$45.99$37.71Usually ships in 7-10 business days
52KR-25807-00-00

(replaces part #
2KR-W0041-00-00)

CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
64TR-25867-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
791314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
85EL-25872-00-00HOSE, BRAKE 1$89.99$70.19Usually ships in 7-10 business days
94L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1090401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
125EL-25871-00-00PIPE, BRAKE$19.99$16.39Usually ships in 7-10 business days
1395027-06020-00

(replaces part #
90105-06400-00)

BOLT, FLANGE-$2.8110+ In-Stock
1495307-06800-00NUT$4.15$3.574 In-Stock
155EL-25873-00-00HOSE, BRAKE 2$141.77$110.58Usually ships in 7-10 business days
