2000 Yamaha Virago XV250 Starter Clutch OEM Parts Diagram

Submodel VIRAGO 250 - XV250MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

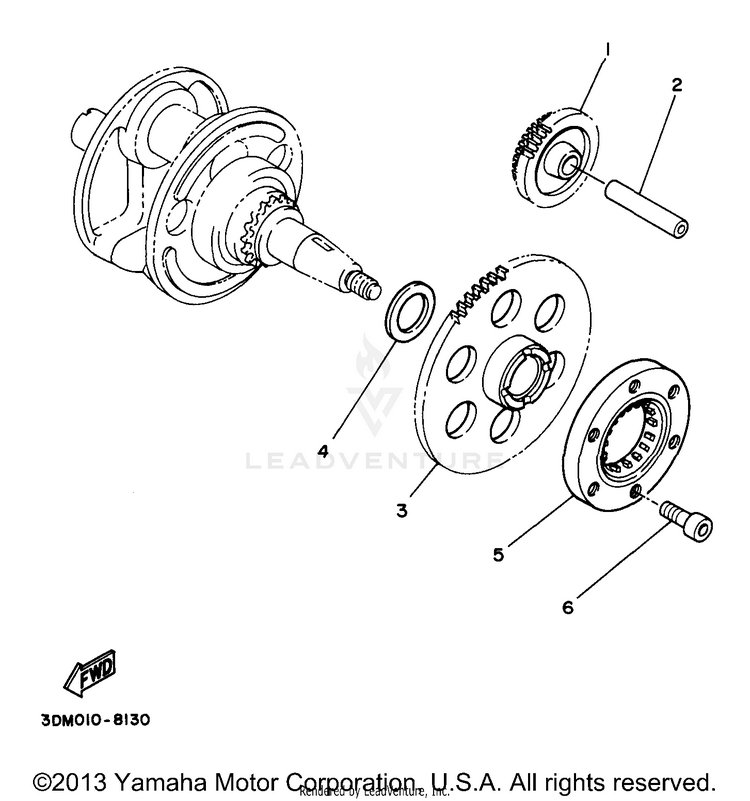

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UJ-15512-00-00GEAR, IDLER 1$67.99$53.03Usually ships in 7-10 business days
25H0-15521-00-00SHAFT 1$34.99$28.69Usually ships in 7-10 business days
399999-03488-00

(replaces part #
2UJ-15517-00-00)

GEAR, IDLER 2$150.99$119.09Usually ships in 7-10 business days
490201-25291-00WASHER, PLATE$11.49$8.968 In-Stock
551Y-15590-01-00STARTER ONE-WAY ASSY$317.99$248.03Usually ships in 7-10 business days
691317-08018-00BOLT$9.49$7.406 In-Stock
