2000 Yamaha WARRIOR 350 Fuel Tank OEM Parts Diagram

Submodel WARRIOR - YFM350XMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

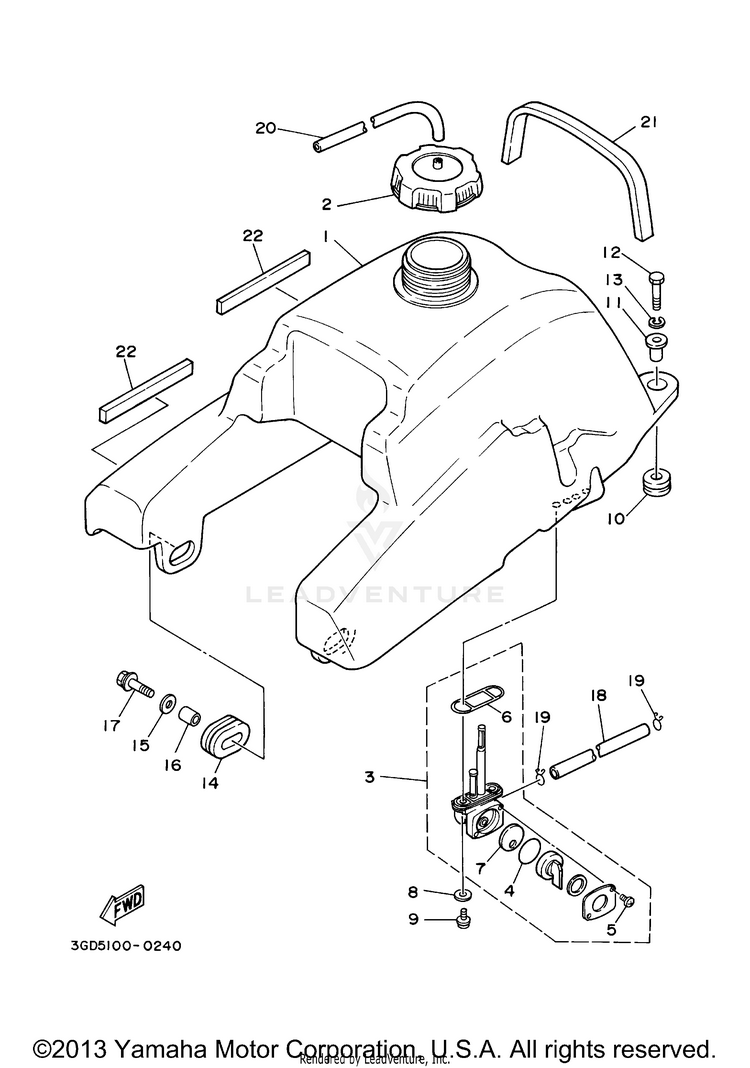

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-24110-01-00FUEL TANK COMP.$153.99$120.11Not Shipping
25MV-24610-00-00

(replaces part #
1UY-24610-00-00)

CAP ASSY$63.99$49.916 In-Stock
321V-24500-20-00

(replaces part #
21V-24500-10-00)

FUEL COCK ASSY 1$56.99$44.452 In-Stock
43AJ-24534-01-00

(replaces part #
3AJ-24534-00-00)

SEAL, COCK$11.99$9.3510+ In-Stock
598580-03008-00

(replaces part #
97801-03008-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
64X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
73AC-24523-00-00

(replaces part #
3AJ-24523-00-00)

VALVE PACKING$14.49$11.3010+ In-Stock
890202-05187-00

(replaces part #
90202-05193-00)

WASHER, PLATE$1.70$1.4610+ In-Stock
990149-06011-00SCREW$2.05$1.7610+ In-Stock
1090480-18290-00GROMMET$9.49$8.0510+ In-Stock
1190387-066H4-00COLLAR$9.49$7.4010+ In-Stock
1297017-06030-00

(replaces part #
97007-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1392907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
1490480-01400-00GROMMET$14.49$11.3010+ In-Stock
1590201-06090-00

(replaces part #
90201-060L5-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1690387-07598-00COLLAR$6.49$5.0610+ In-Stock
1790119-06073-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
1890445-116K9-00

(replaces part #
90445-11663-00)

HOSE (L400)$26.99$21.056 In-Stock
1990467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
2090445-083J5-00

(replaces part #
90445-084J1-00)

HOSE (L460)$11.49$8.9610+ In-Stock
211UY-2414H-00-00DAMPER, PLATE 1$36.99$30.33Usually ships in 7-10 business days
223GD-24181-00-00DAMPER, LOCATING 1$4.40$3.96Not Shipping
