2000 Yamaha XT225 Serow Electrical 1 OEM Parts Diagram

Submodel SEROW - XT225MC - 2000

Shop Aftermarket Parts

ELECTRICAL 1

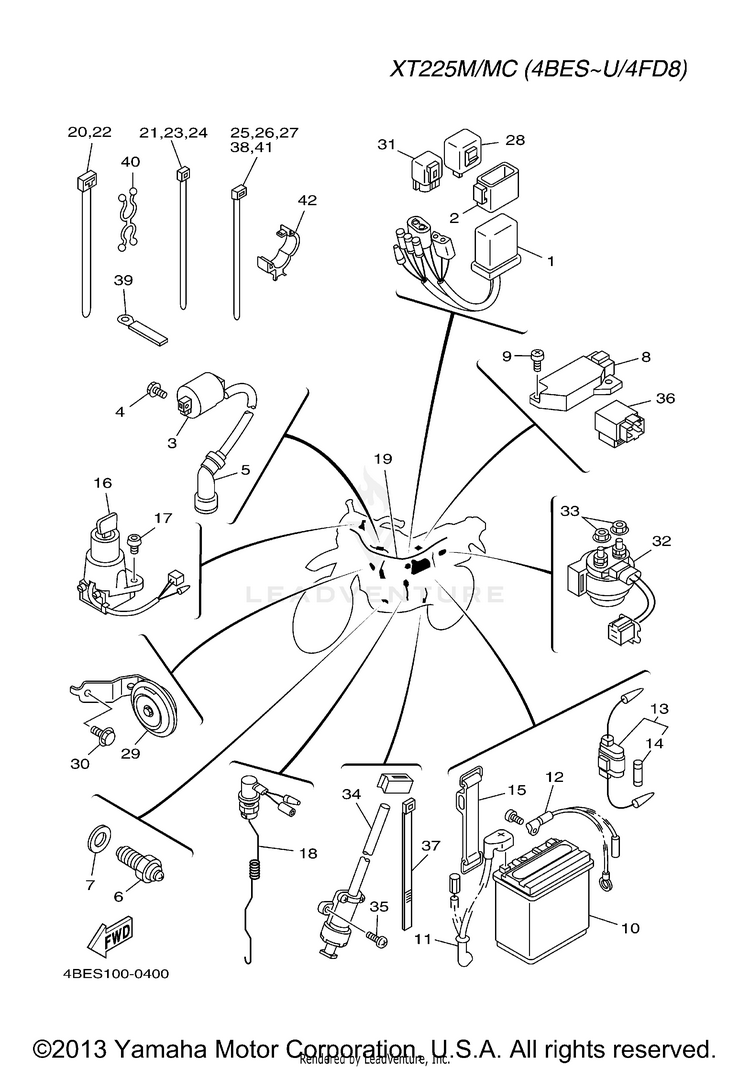

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-85540-01-00C.D.I. UNIT ASSEMBLY$423.99$330.71Not Shipping
23RW-85546-00-00BAND$13.99$11.47Usually ships in 7-10 business days
33KJ-82310-14-00

(replaces part #
4BE-82310-10-00)

IGNITION COIL ASSY$41.99$41.7510+ In-Stock
490105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
53NS-82370-00-00PLUG CAP ASSY$41.99$32.7510+ In-Stock
64GY-82540-10-00

(replaces part #
4KM-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
790430-10148-00GASKET$5.99$4.6710+ In-Stock
83TJ-81960-02-00RECTIFIER & REGULATOR ASSY$184.99$144.294 In-Stock
AFTERMARKET ALTERNATIVE
$22.99$12.9910+ In-Stock
998517-06025-00

(replaces part #
98507-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
10YTX-7LBS0-00-00

(replaces part #
4BE-82100-11-00)

YTX7LBS YUASA BATTE$99.99$83.70Usually ships in 7-10 business days
114JG-82115-00-00WIRE, PLUS LEAD$40.99$33.61Not Shipping
124JG-82116-00-00WIRE, MINUS LEAD$19.49$15.98Not Shipping
132TV-82150-02-00FUSE HOLDER ASSEMBLY$14.49$11.88Usually ships in 7-10 business days
144X7-82151-00-00FUSE (15A)$4.30$4.058 In-Stock
1522F-82131-00-00

(replaces part #
3L8-82131-01-00)

BAND, BATTERY$32.99$25.733 In-Stock
162HV-82501-00-00MAIN SWITCH STEERING LOCK$173.99$135.71Not Shipping
1790149-06228-00SCREW$10.49$8.6010+ In-Stock
185BT-82530-00-00STOP SWITCH ASSY$50.99$39.77Usually ships in 7-10 business days
194BE-82590-01-00WIRE HARNESS ASSEMBLY$247.99$193.43Not Shipping
2090464-20258-00

(replaces part #
90464-20044-00)

CLAMP$5.99$5.39Usually ships in 7-10 business days
211UA-82591-00-00

(replaces part #
90465-13152-00)

BAND$5.49$4.2810+ In-Stock
2290464-20258-00

(replaces part #
90464-20044-00)

CLAMP$5.99$5.39Usually ships in 7-10 business days
231UA-82591-00-00

(replaces part #
90465-13152-00)

BAND$5.49$4.2810+ In-Stock
241UA-82591-00-00

(replaces part #
90465-13152-00)

BAND$5.49$4.2810+ In-Stock
2590464-16061-00CLAMP$6.99$4.29Not Shipping
2690464-16061-00CLAMP$6.99$4.29Not Shipping
2790464-16061-00CLAMP$6.99$4.29Not Shipping
284VR-83350-02-00

(replaces part #
4BE-83350-00-00)

FLASHER RELAY ASSY$60.99$47.57Usually ships in 7-10 business days
293RW-83371-11-00

(replaces part #
3RW-83371-00-00)

HORN$30.99$25.41Usually ships in 7-10 business days
3095817-06010-00

(replaces part #
95807-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
313RW-81950-01-00

(replaces part #
3RW-81950-00-00)

RELAY ASSY$46.99$38.53Usually ships in 7-10 business days
324KD-81940-00-00

(replaces part #
3AY-81940-00-00)

STARTER RELAY ASSY (MS65D-611)$125.99$98.275 In-Stock
AFTERMARKET ALTERNATIVE
$18.99$12.4910+ In-Stock
3395707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
343LD-82566-41-00

(replaces part #
3LD-82566-40-00)

SWITCH, SIDE STAND$75.99$59.27Usually ships in 7-10 business days
3598507-05016-00SCREW, WITH WASHER$1.80$1.5510+ In-Stock
3629U-81950-93-00RELAY ASSY (ACA12115-1)$84.99$66.29
3790464-16061-00CLAMP$6.99$4.29Not Shipping
3890464-16061-00CLAMP$6.99$4.29Not Shipping
3990465-06376-00

(replaces part #
90465-06332-00)

CLAMP$10.49$8.184 In-Stock
4090464-16115-00CLAMP$3.05$2.74Usually ships in 7-10 business days
4190464-16061-00CLAMP$6.99$4.29Not Shipping
4290464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
