2000 Yamaha YZ125 Frame OEM Parts Diagram

Submodel YZ125 - YZ125M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

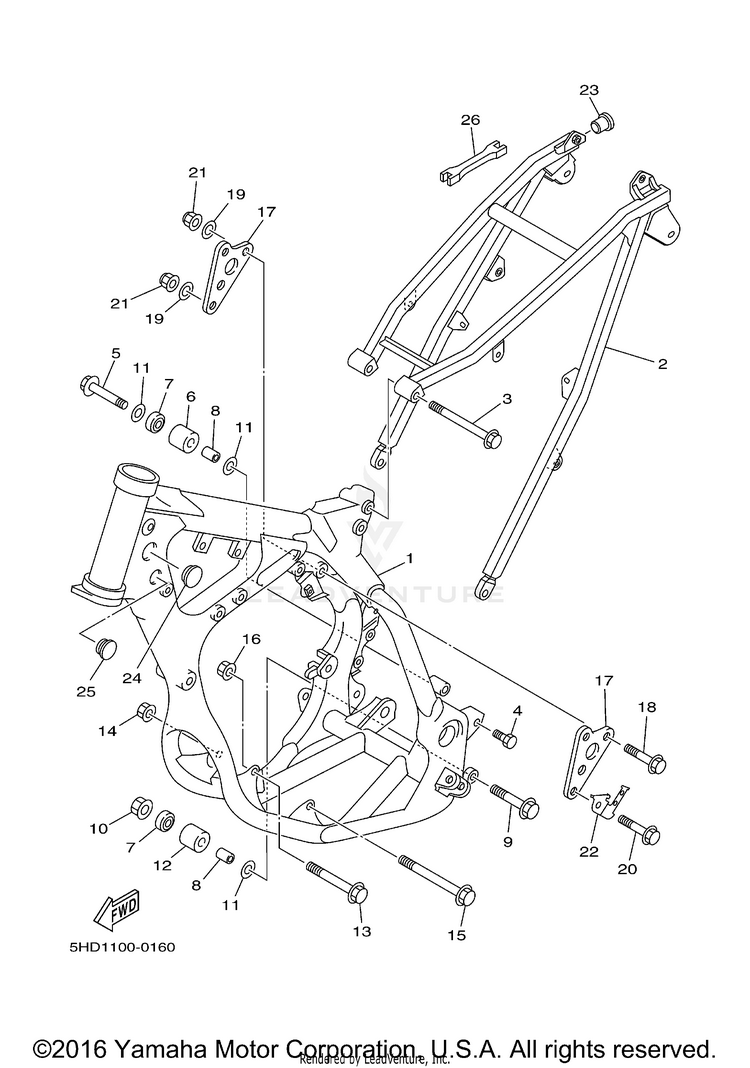

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HD-21110-00-P0FRAME COMP. | DPBMC$1,209.99$982.49Usually ships in 7-10 business days
25HC-21190-00-P0REAR FRAME COMP. | DPBMC$574.99$448.49Not Shipping
390105-08099-00BOLT, FLANGE$6.49$5.0610+ In-Stock
490110-08096-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
595027-08040-00BOLT, FLANGE$9.49$7.4010+ In-Stock
64EW-22178-01-00

(replaces part #
4EW-22178-00-00)

TENSIONER$16.49$12.863 In-Stock
793300-60804-00BEARING$13.49$10.5210+ In-Stock
890387-086N4-00COLLAR$10.49$8.1810+ In-Stock
995027-08065-00BOLT, FLANGE$11.49$8.968 In-Stock
1095707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
1190201-086P8-00WASHER, PLATE$5.49$4.2810+ In-Stock
123JD-22178-20-00

(replaces part #
3JD-22178-10-00)

TENSIONER$47.99$37.4310+ In-Stock
1395817-10090-00BOLT, FLANGE$10.49$8.186 In-Stock
1495607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
1590105-10733-00BOLT, FLANGE$4.85$4.1710+ In-Stock
1695607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
174SS-21425-00-00BRACKET, REAR UPPER 1$32.39$26.56Not Shipping
1895817-08050-00BOLT, FLANGE$3.70$3.1810+ In-Stock
1990201-087F0-00

(replaces part #
90201-08730-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
2090105-08225-00

(replaces part #
90105-08494-00)

BOLT, WASHER BASED$1.55$1.40Not Shipping
2190185-08169-00NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
225DH-21274-00-00BRACKET, C.D.I. UNIT$48.99$40.17Not Shipping
2390338-16148-00PLUG$12.49$9.7410+ In-Stock
2490338-30256-00PLUG$9.49$8.546 In-Stock
2590338-21145-00PLUG$16.49$12.8610+ In-Stock
265ET-28166-10-00

(replaces part #
5ET-28166-00-00)

WRENCH, HEXAGON$35.99$28.072 In-Stock
