2000 Yamaha YZ80 Frame OEM Parts Diagram

Submodel YZ80 - YZ80M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

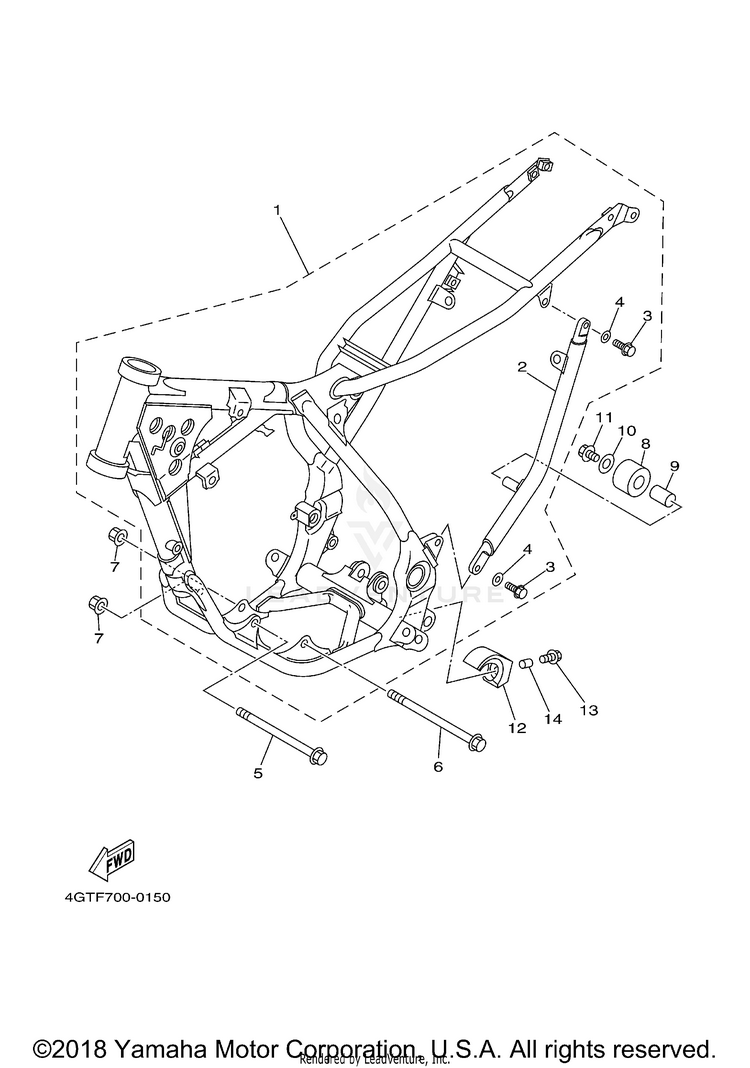

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-21110-02-P0FRAME COMP. | DPBMC$1,133.99$920.45Usually ships in 7-10 business days
24ES-21123-00-P2BACK, STAY LH. | DPBMC$142.99$111.53Usually ships in 7-10 business days
395027-08020-00BOLT, FLANGE$9.49$7.409 In-Stock
490201-080E2-00WASHER, PLATE$5.49$4.2810+ In-Stock
595817-08125-00BOLT, FLANGE$10.49$8.185 In-Stock
695817-08135-00BOLT, FLANGE$4.75$4.08Not Shipping
790185-08169-00

(replaces part #
95607-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
830X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
94V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
1090201-081R9-00WASHER, PLATE$10.49$8.1810+ In-Stock
1195027-08012-00BOLT, FLANGE$10.49$8.188 In-Stock
1299999-04397-00

(replaces part #
4ES-22178-00-00)

TENSIONER SET$20.99$16.375 In-Stock
1390119-06118-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
1490387-060A3-00COLLAR$9.49$7.402 In-Stock
