2000 Yamaha YZF-R1 Seat OEM Parts Diagram

Submodel R1 - YZFR1MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

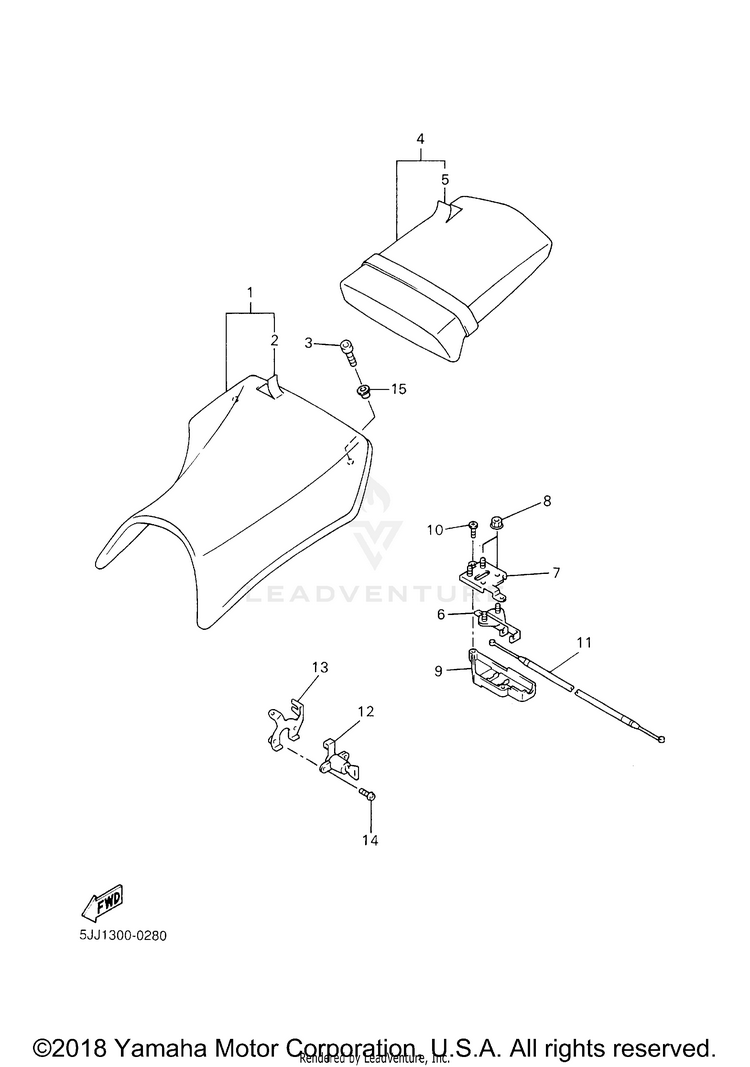

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JJ-24710-00-00SINGLE SEAT ASSY$221.99$173.15Usually ships in 7-10 business days
25JJ-2470F-00-00COVER, SEAT$92.99$72.53Usually ships in 7-10 business days
390110-06258-00BOLT, HEXAGON SOCKET HEAD$10.49$8.187 In-Stock
45JJ-24750-00-00TANDEM SEAT ASSY$244.99$194.27Usually ships in 7-10 business days
55JJ-24751-00-00COVER, TANDEM SEAT$64.99$50.69Usually ships in 7-10 business days
64BP-24780-00-00SEAT LOCK ASSY$105.99$82.67Usually ships in 7-10 business days
75JJ-24792-01-00

(replaces part #
5JJ-24792-00-00)

PLATE$11.99$9.83Usually ships in 7-10 business days
895707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
95JJ-2475X-01-00

(replaces part #
5JJ-2475X-00-00)

COVER, 2$7.99$7.19Usually ships in 7-10 business days
1097707-40012-00SCREW, TAPPING$9.49$7.4010+ In-Stock
115JJ-2478E-00-00CABLE, SEAT LOCK$15.99$13.11Usually ships in 7-10 business days
123CK-W2470-00-00

(replaces part #
2TV-W2470-00-00)

SEAT LOCK ASSY$91.99$71.75Usually ships in 7-10 business days
134XV-2117K-00-00STAY, LOCK$19.99$16.39Usually ships in 7-10 business days
1490149-06308-00SCREW$9.49$8.54Usually ships in 7-10 business days
1590387-06066-00COLLAR$9.49$7.404 In-Stock
