2001 Yamaha BANSHEE 350 Rear Master Cylinder OEM Parts Diagram

Submodel BANSHEE - YFZ350N - 2001

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR MASTER CYLINDER

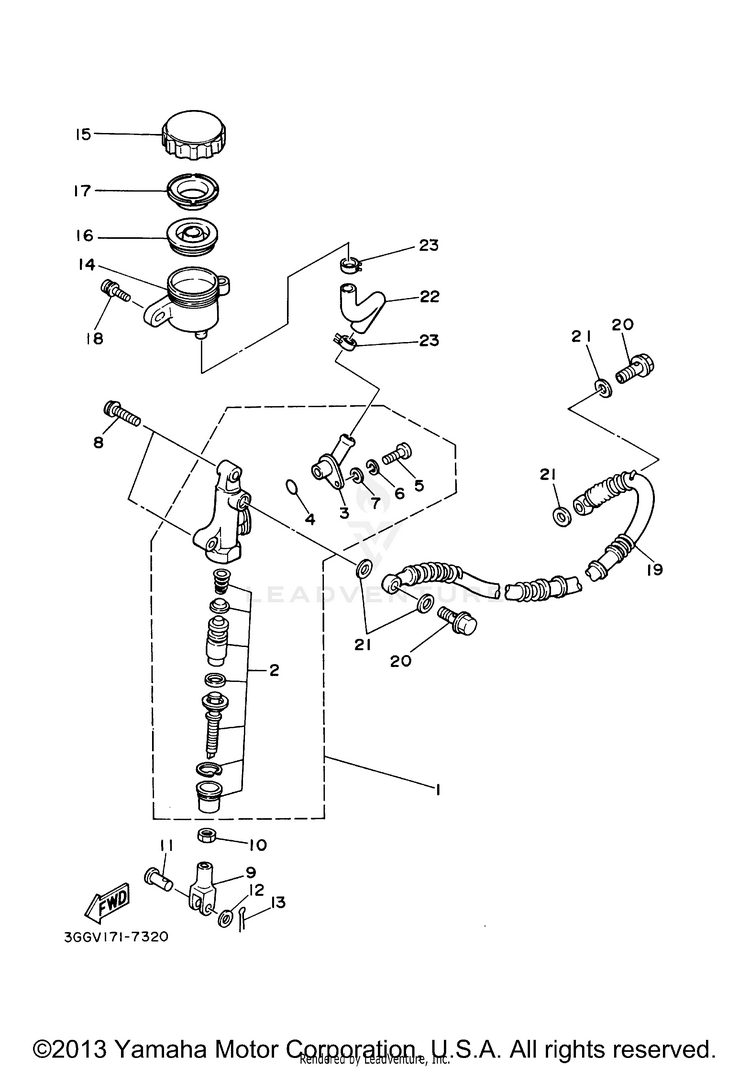

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
129L-25850-51-00MASTER CYLINDER ASSY | (U49)$273.99$213.71Not Shipping
24GY-W0042-00-00

(replaces part #
29L-W0042-50-00)

CYLINDER KIT, MASTER | (U49)$79.99$62.392 In-Stock
329L-2582A-50-00JOINT | (U49)$87.99$68.63Usually ships in 7-10 business days
493210-15566-00

(replaces part #
93210-15620-00)

O-RING | (U49)$8.49$6.6210+ In-Stock
598517-04012-00

(replaces part #
98502-04012-00)

SCREW,PANHEAD | (U49)$4.20$3.6110+ In-Stock
692990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING | (U49)-$1.0210+ In-Stock
792990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE | (U49)$0.99$0.907 In-Stock
892017-08025-00BOLT, BUTTON HEAD | (U49)$9.49$7.40
931A-27222-00-00JOINT | (U49)$47.99$39.35Usually ships in 7-10 business days
1095317-08700-00

(replaces part #
95307-08700-00)

NUT | (U49)$10.49$8.185 In-Stock
1190240-08013-00PIN, CLEVIS | (U49)$9.49$7.401 In-Stock
1290201-08083-00WASHER, PLATE | (U49)$10.49$8.1810+ In-Stock
1391490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER | (U49)$6.99$5.456 In-Stock
141A1-25894-01-00TANK, RESERVOIR | (U49)$26.99$21.0510+ In-Stock
152KF-25852-50-00CAP, RESERVOIR | (U49)$51.99$40.554 In-Stock
16360-25854-01-00DIAPHRAGM, RESERVOIR | (U49)$25.99$20.274 In-Stock
172GU-25855-00-00BUSH, DIAPHRAGM | (U49)$33.99$26.511 In-Stock
1890159-06056-00SCREW, WITH WASHER | (U49)$9.49$7.406 In-Stock
193GG-25874-10-00

(replaces part #
3GG-25874-02-00)

HOSE, BRAKE | (U49)$100.99$78.77Usually ships in 7-10 business days
2090401-10159-00BOLT, UNION | (U49)$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE | (U49)$3.80$3.2710+ In-Stock
222GU-25895-00-00HOSE, RESERVOIR | (U49)$22.99$17.935 In-Stock
2390467-14057-00CLIP | (U49)$9.49$7.403 In-Stock
