2001 Yamaha WARRIOR 350 Front Fender OEM Parts Diagram

Submodel WARRIOR - YFM350XNC - 2001

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER

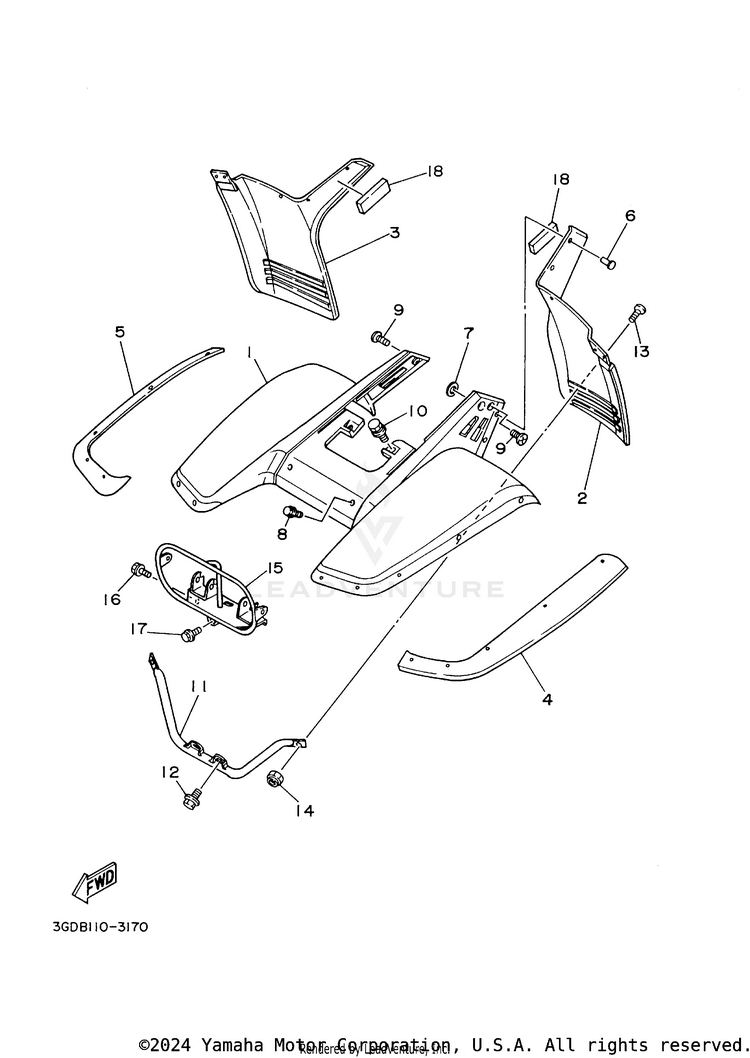

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-W2151-D2-00FRONT FENDER COMP. | UR RW$266.99$208.25Usually ships in 7-10 business days
13GD-W2151-F2-00FRONT FENDER COMP. | UR DPBSE$259.07$202.07Not Shipping
23GD-W2153-11-00FLAP ASSY1$97.99$76.43Not Shipping
31UY-21561-00-00FLAP 2$90.99$70.97Not Shipping
41UY-21551-00-00FENDER, OVER$89.99$70.19Not Shipping
51UY-21555-00-00FENDER, OVER 2$89.99$70.19Usually ships in 7-10 business days
690267-48014-00RIVET, BLIND (4.8X15.1 BLACK)$5.49$4.9410+ In-Stock
790201-04027-00

(replaces part #
90201-04325-00)

WASHER, PLATE$2.45$2.117 In-Stock
890119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
990111-05059-00

(replaces part #
90110-05201-00)

BOLT,HEX. SOCKET BUT$2.80$2.7610+ In-Stock
1090119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
111UY-21513-00-00STAY, FENDER 1$85.99$67.07Not Shipping
1295817-06010-00

(replaces part #
95827-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
1390149-06184-00SCREW, BINDING$4.85$4.172 In-Stock
1495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
153GD-23174-30-00

(replaces part #
3GD-23174-20-00)

STAY, HEADLIGHT$192.99$150.53Not Shipping
1695817-06010-00

(replaces part #
95827-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
1795817-08012-00

(replaces part #
95827-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
183RW-21639-00-00

(replaces part #
1UY-21747-00-00)

DAMPER 2$8.99$8.09Usually ships in 7-10 business days
