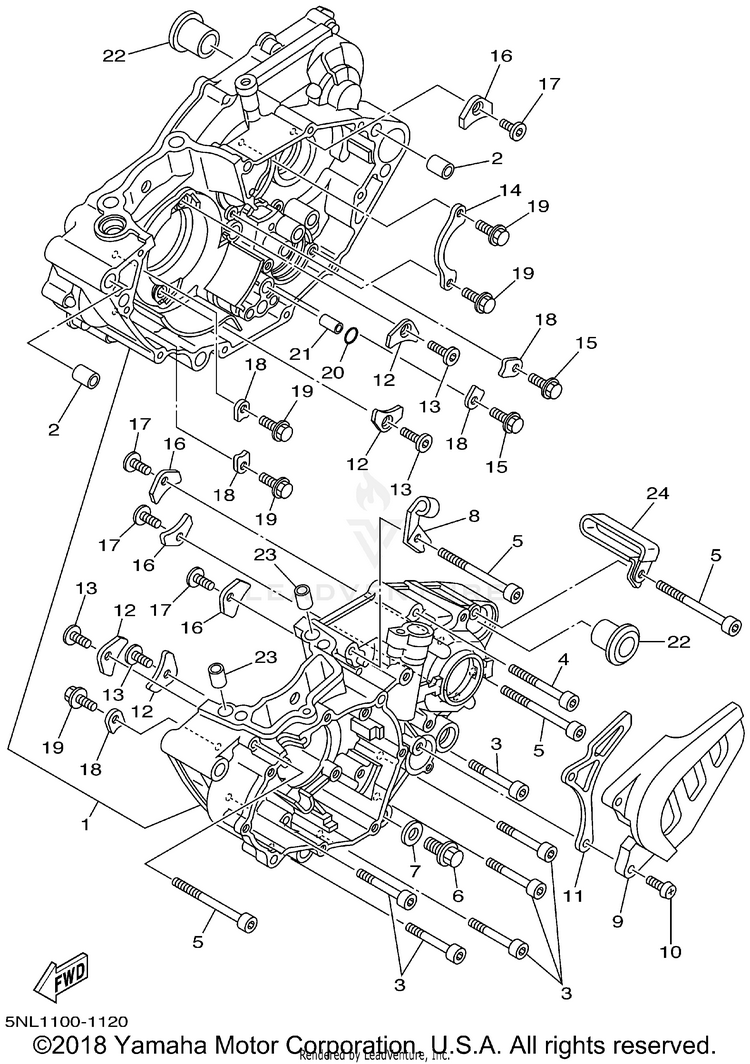

2001 Yamaha WR250F Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5NL-15100-00-YX (replaces part # 5NL-15150-00-00)	CRANKCASE ASSY \| (5PH1)	$697.99	$548.80	Not Shipping
2	93612-16254-00	PIN, DOWEL \| (5PH1)	$6.49	$5.06	10+ In-Stock
3	91317-06045-00	BOLT \| (5PH1)	$5.49	$4.28	10+ In-Stock
4	91317-06055-00	BOLT \| (5PH1)	$4.50	$3.87	10+ In-Stock
5	91317-06070-00	BOLT, HEX. SOCKET HEAD \| (5PH1)	$5.49	$4.28	10+ In-Stock
6	95027-10016-00	BOLT, FLANGE \| (5PH1)	$9.49	$7.40	4 In-Stock
7	90430-10188-00	GASKET \| (5PH1) INCL. IN BOTTOM END GASKET KIT	$3.45	$2.97	10+ In-Stock
8	5NL-15441-01-00	HOLDER, CLUTCH CABLE \| (5PH1)	$18.99	$14.81	3 In-Stock
9	5BE-15421-20-00 (replaces part # 5BE-15421-00-00)	COVER, CRANKCASE 2 \| (5PH1)	$43.99	$34.31	3 In-Stock
10	98517-06025-00 (replaces part # 98507-06025-00)	SCREW, PAN HEAD \| (5PH1)	$4.05	$3.48	10+ In-Stock
11	5NL-17466-00-00	GUIDE, CHAIN \| (5PH1)	$19.99	$15.59	5 In-Stock
12	5BE-15383-01-00	PLATE, BEARING COVER \| (5PH1)	$11.99	$9.35	10+ In-Stock
13	90149-06126-00	SCREW \| (5PH1)	$10.49	$8.18	10+ In-Stock
14	5NL-15388-00-00	PLATE, BEARING COVER \| (5PH1)	$8.49	$7.64	Usually ships in 7-10 business days
15	95027-06012-00 (replaces part # 90105-06553-00)	BOLT, FLANGE \| (5PH1)	$4.20	$3.61	10+ In-Stock
16	4JT-15381-01-00	PLATE, BEARING COVER \| (5PH1)	$14.49	$11.30	10+ In-Stock
17	90151-06052-00 (replaces part # 90149-06326-00)	SCREW \| (5PH1)	$9.49	$7.40	10+ In-Stock
18	5DH-18562-00-00	PLATE, STOPPER 2 \| (5PH1)	$8.49	$6.62	7 In-Stock
19	95027-06012-00 (replaces part # 90105-06553-00)	BOLT, FLANGE \| (5PH1)	$4.20	$3.61	10+ In-Stock
20	93210-10197-00	O-RING \| (5PH1)	$8.49	$6.62	10+ In-Stock
21	99530-10114-00	PIN, DOWEL \| (5PH1)	$2.65	$2.48	10+ In-Stock
22	90387-1712Y-00	COLLAR \| (5PH1)	$23.99	$18.71	Not Shipping
23	99530-10116-00	PIN, DOWEL \| (5PH1)	$4.40	$3.78	10+ In-Stock
24	90465-10013-00	CLAMP \| (5PH1)	$22.99	$17.93	1 In-Stock
