2001 Yamaha WR426F Electrical 1 OEM Parts Diagram

Submodel WR426F - WR426FN - 2001

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

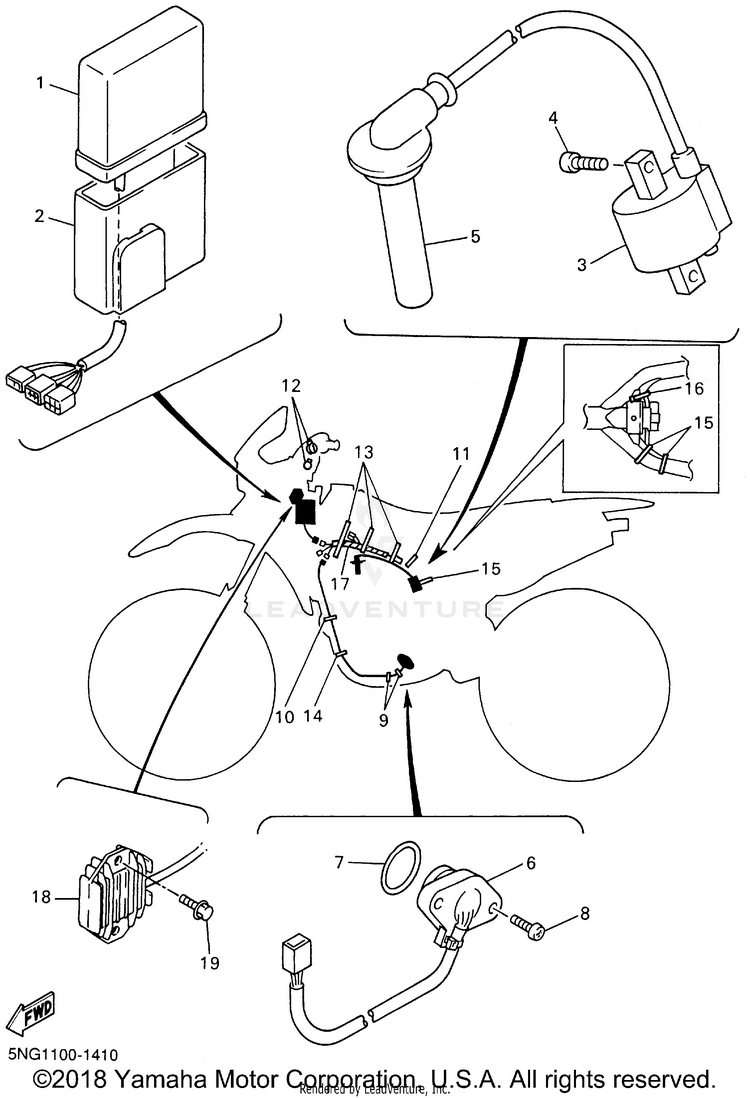

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NG-85540-00-00C.D.I. UNIT ASSY | (5NG1)$502.99$392.33Not Shipping
25BE-85546-00-00BAND | (5NG1)$22.99$18.85Usually ships in 7-10 business days
34MX-82310-02-00

(replaces part #
5BE-82310-00-00)

IGNITION COIL ASSY | (5NG1)$84.99$66.296 In-Stock
491317-06016-00BOLT (4MY) | (5NG1)-$1.4210+ In-Stock
55BE-82370-00-00PLUG CAP ASSY | (5NG1)$153.99$120.112 In-Stock
65BE-82540-03-00

(replaces part #
5BE-82540-01-00)

NEUTRAL SWITCH ASSY | (5NG1)$76.99$60.054 In-Stock
793210-21001-00

(replaces part #
93210-21276-00)

O-RING | (5NG1)$6.49$5.0610+ In-Stock
890154-05046-00

(replaces part #
90154-05073-00)

SCREW, BINDING | (5NG1)$2.45$2.114 In-Stock
990464-16061-00CLAMP | (5NG1)$6.99$4.29Not Shipping
1090464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (5NG1)$4.41$3.7910+ In-Stock
1190464-15195-00CLAMP | (5NG1)$4.41$3.7910+ In-Stock
1290464-13077-00CLAMP | (5NG1)$9.49$7.4010+ In-Stock
1390464-15152-00CLAMP | (5NG1)$6.49$5.068 In-Stock
1490464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (5NG1)$4.41$3.7910+ In-Stock
1590464-15195-00CLAMP | (5NG1)$4.41$3.7910+ In-Stock
161UA-82591-00-00

(replaces part #
90465-13152-00)

BAND | (5NG1)$5.49$4.2810+ In-Stock
175NG-82509-00-00WIRE, SUB LEAD | (5NG1)$115.99$90.47Usually ships in 7-10 business days
185GS-81910-50-00VOLTAGE REGULATOR ASSY | (5NG1)$105.99$82.67Not Shipping
1995817-06020-00

(replaces part #
95827-06020-00)

BOLT, FLANGE | (5NG1)$3.50$3.0110+ In-Stock
