2002 Yamaha BEAR TRACKER Starter Clutch OEM Parts Diagram

Submodel BEAR TRACKER 2WD_REALTREE - YFM250XHP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

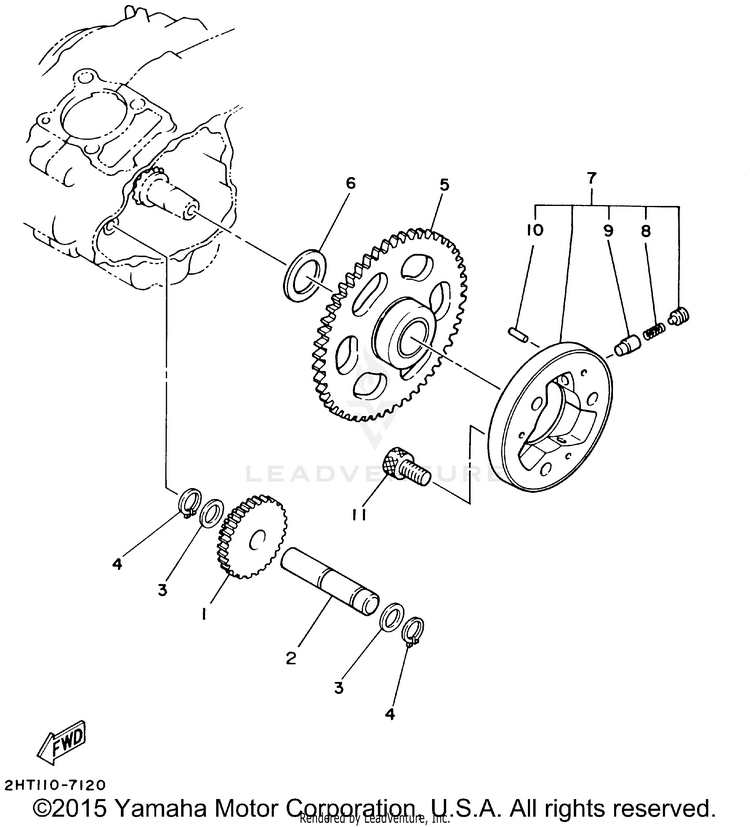

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HT-15512-00-00GEAR, IDLER 1 (41T/10T) | (USA)$100.99$78.77Usually ships in 7-10 business days
22HT-15521-00-00SHAFT 1 | (USA)$34.99$28.69Usually ships in 7-10 business days
390201-12166-00WASHER, PLATE | (USA)$10.49$8.184 In-Stock
499009-12400-00CIRCLIP | (USA)$3.59$3.0910+ In-Stock
55H0-15517-00-00GEAR, IDLER 2 (56T) | (USA)$166.99$130.25Usually ships in 7-10 business days
690201-256K6-00

(replaces part #
90201-25290-00)

WASHER, PLATE (0.9T) | (USA)$4.75$4.089 In-Stock
74H7-15580-10-00STARTER CLUTCH OUTER ASSY | (USA)$203.99$159.115 In-Stock
890501-04596-00SPRING, COMPRESSION | (USA)$10.49$8.186 In-Stock
91J7-15583-01-00CAP, STARTER CLUTCH SPRING | (USA)$19.99$15.596 In-Stock
1093615-12088-00PIN, DOWEL | (USA)$8.49$6.627 In-Stock
1191317-08016-00BOLT | (USA)$9.49$7.4010+ In-Stock
