CRANKCASE

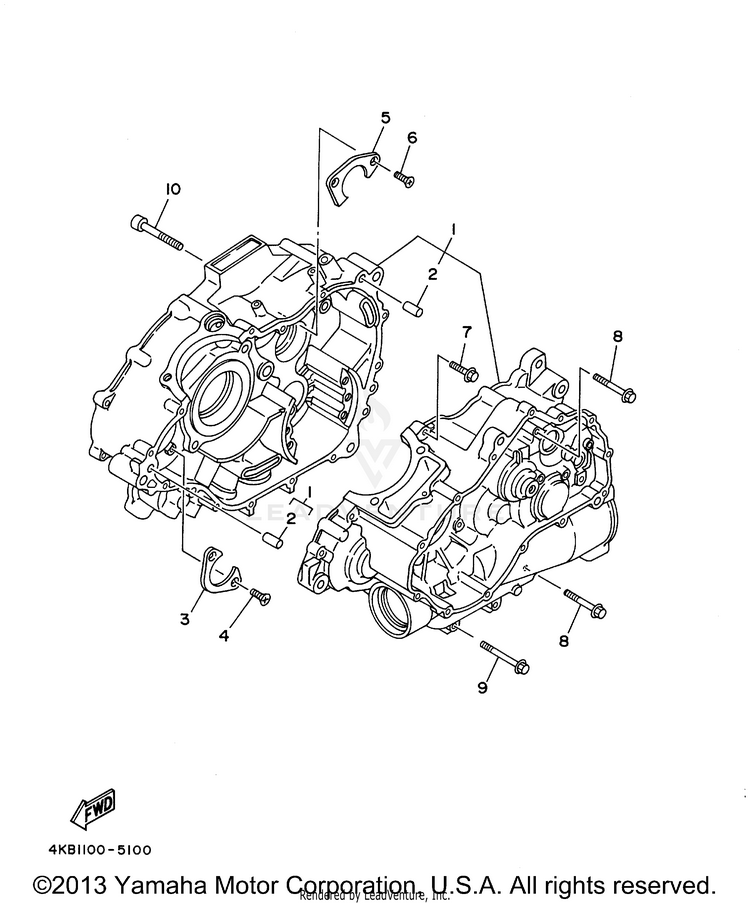

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-15100-04-00CRANKCASE ASSY$717.99$564.94Usually ships in 7-10 business days
299530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
31UY-15383-00-00PLATE, BEARING COVER$8.49$7.64Usually ships in 7-10 business days
498707-06016-00SCREW, FLAT HEAD$9.49$7.401 In-Stock
54KB-15383-00-00PLATE, BEARING COVER$10.49$8.60Usually ships in 7-10 business days
698707-06016-00SCREW, FLAT HEAD$9.49$7.401 In-Stock
795027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
895027-06050-00BOLT, FLANGE$2.75$2.3610+ In-Stock
995027-06060-00BOLT, FLANGE$3.10$2.677 In-Stock
1091317-08060-00

(replaces part #
90110-08234-00)

BOLT,SOCKET HEAD$4.00$3.60Usually ships in 7-10 business days
