2002 Yamaha RAPTOR 660 Steering Handle Cable OEM Parts Diagram

Submodel RAPTOR LIMTED EDITION - BLACK - YFM660RPB - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

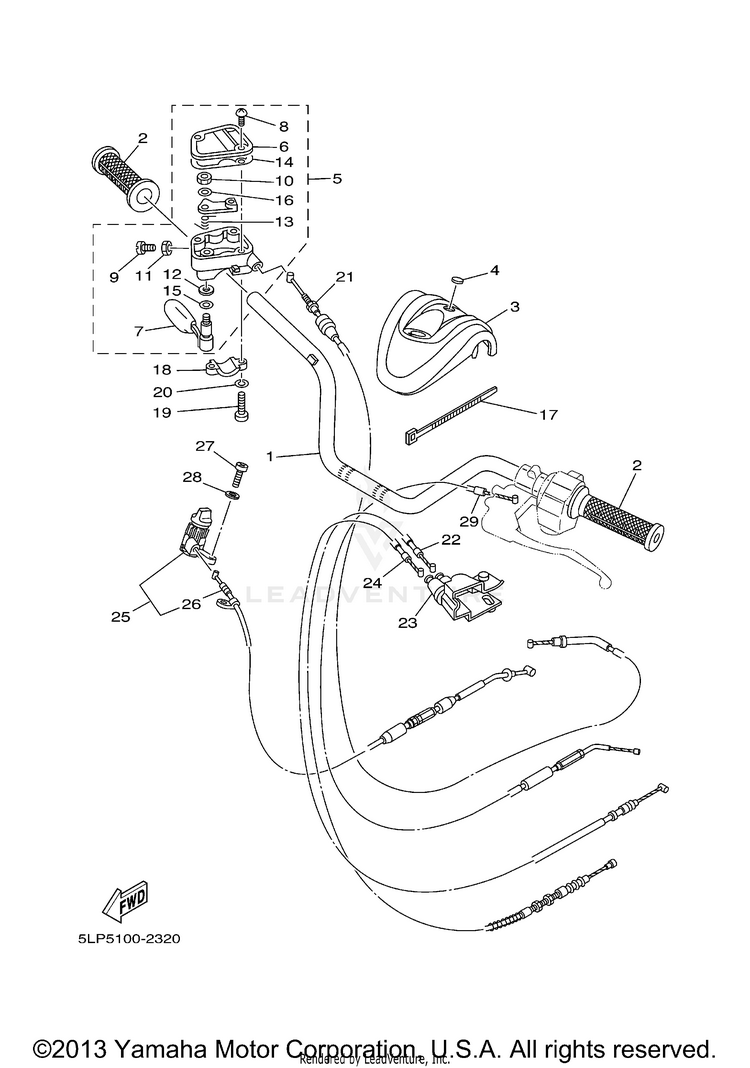

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-26111-10-00HANDLEBAR$46.20$37.88Not Shipping
25LP-26241-00-00GRIP$26.99$21.0510+ In-Stock
35LP-26124-10-00PROTECTOR, HANDLEBAR$15.49$12.70Not Shipping
45GT-2836B-10-00TUNING FORK MARK$17.99$14.034 In-Stock
54KB-26250-12-00

(replaces part #
4KB-26250-00-00)

THROTTLE LEVER ASSY-$260.603 In-Stock
64KB-2628F-00-00CAP, GEAR$23.99$19.67Not Shipping
71NV-2625G-02-00

(replaces part #
1NV-2625G-01-00)

LEVER, THROTTLE$65.99$51.474 In-Stock
890149-04278-00SCREW$0.95$0.8210+ In-Stock
998517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1095617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1195317-05700-00

(replaces part #
95307-05700-00)

NUT$9.49$7.402 In-Stock
1293104-09025-00OIL SEAL$8.49$6.623 In-Stock
131NV-26304-00-00SPRING$12.99$10.133 In-Stock
144KB-2628G-00-00GASKET$14.49$11.301 In-Stock
151NV-26129-00-00WASHER$7.49$5.842 In-Stock
1653L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
17437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
184V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
1998517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
2092907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
215LP-26311-00-00CABLE, THROTTLE 1$45.99$35.872 In-Stock
225LP-26335-10-00CABLE, CLUTCH$66.99$52.251 In-Stock
231UY-2637A-01-00COVER, HANDLE LEVER 2$50.99$39.771 In-Stock
245LP-26341-00-00CABLE, BRAKE$63.99$49.91Usually ships in 7-10 business days
255LP-26150-10-00REV. LEVER ASSY.$223.99$174.712 In-Stock
265LP-2637E-10-00CABLE, CONTROL 1$51.99$40.55Not Shipping
2798507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
2892907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
295LP-26331-10-00CABLE, STARTER 1$47.99$37.434 In-Stock
