2002 Yamaha WARRIOR 350 Rear Suspension OEM Parts Diagram

Submodel WARRIOR - YFM350XPC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SUSPENSION

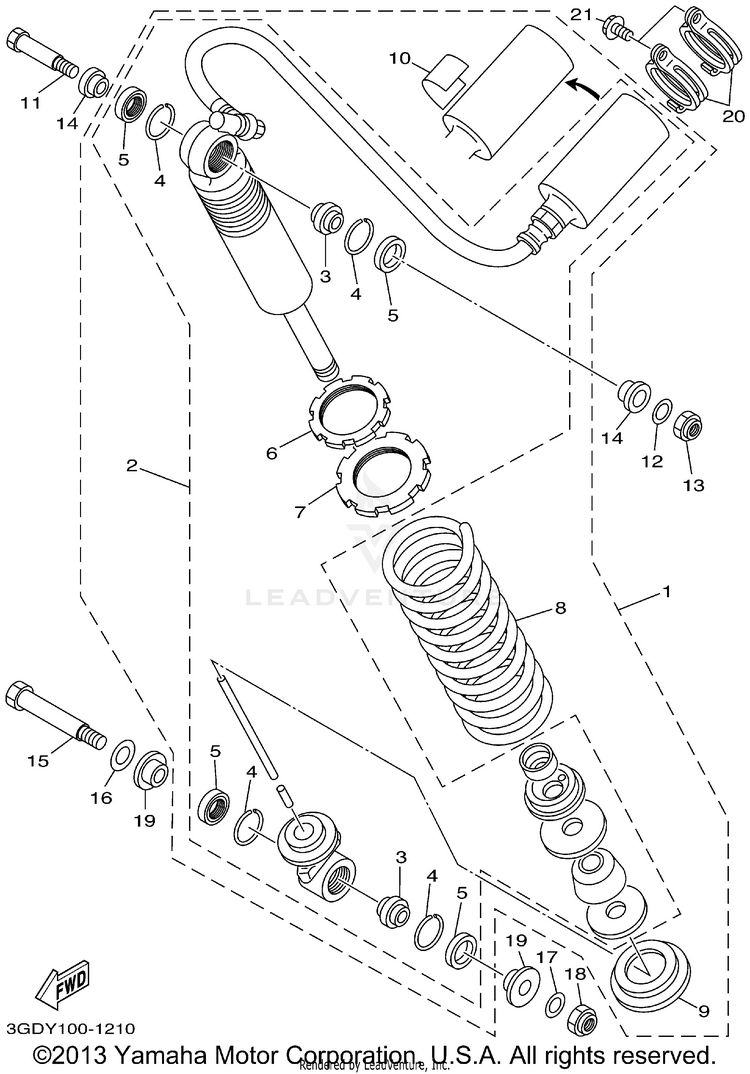

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-38W-22212-10-P2SPRING | UR FOR YB$184.99$144.29Usually ships in 7-10 business days
-2XK-22210-12-36

(replaces part #
2XK-22210-10-36)

SHOCK ABSORBER ASSY, REAR | UR FOR DPBSE$623.99$486.71Not Shipping
12XK-22210-21-P2

(replaces part #
2XK-22210-10-P2)

SHOCK ABSORBER ASSY, | UR FOR YB$623.99$486.71Usually ships in 7-10 business days
22XK-22201-01-00

(replaces part #
2XK-22201-00-00)

DAMPER SUB ASSY$710.99$554.57Usually ships in 7-10 business days
393399-999T3-00

(replaces part #
93399-99916-00)

BEARING (93399-99934-00)$68.99$53.815 In-Stock
493440-30113-00CIRCLIP$1.85$1.5910+ In-Stock
593104-18077-00OIL SEAL$12.49$9.7410+ In-Stock
61RK-22215-00-00RING, COVER$21.99$18.03Usually ships in 7-10 business days
738W-22223-00-00SEAT, SPRING LOWER$38.99$31.97Usually ships in 7-10 business days
838W-22212-10-36SPRING | UR FOR DPBSE$149.99$116.99Usually ships in 7-10 business days
93P6-22214-10-00

(replaces part #
22W-22214-01-00)

GUIDE, SPRING 1$18.99$15.574 In-Stock
104AA-22259-80-00LABEL, WARNING$14.49$11.30
1190109-10704-00BOLT$11.49$8.96Not Shipping
1290201-100F7-00

(replaces part #
90201-10430-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1390185-10120-00NUT, SELF-LOCKING$6.49$5.0610+ In-Stock
1490387-127G8-00COLLAR$12.49$9.7710+ In-Stock
1590109-102A6-00BOLT$12.49$9.749 In-Stock
1690201-12027-00

(replaces part #
90201-120E6-00)

WASHER, PLATE$9.49$7.404 In-Stock
1790201-10M05-00

(replaces part #
90201-100E9-00)

WASHER, PLATE$6.49$5.066 In-Stock
1890185-10120-00NUT, SELF-LOCKING$6.49$5.0610+ In-Stock
1990387-126H8-00COLLAR$31.99$24.958 In-Stock
201UY-22262-00-00HOLDER, SUB TANK$12.99$10.13Not Shipping
2195817-06016-00

(replaces part #
95827-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
