2002 Yamaha WR250F Front Brake Caliper OEM Parts Diagram

Submodel WR250F - WR250FP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

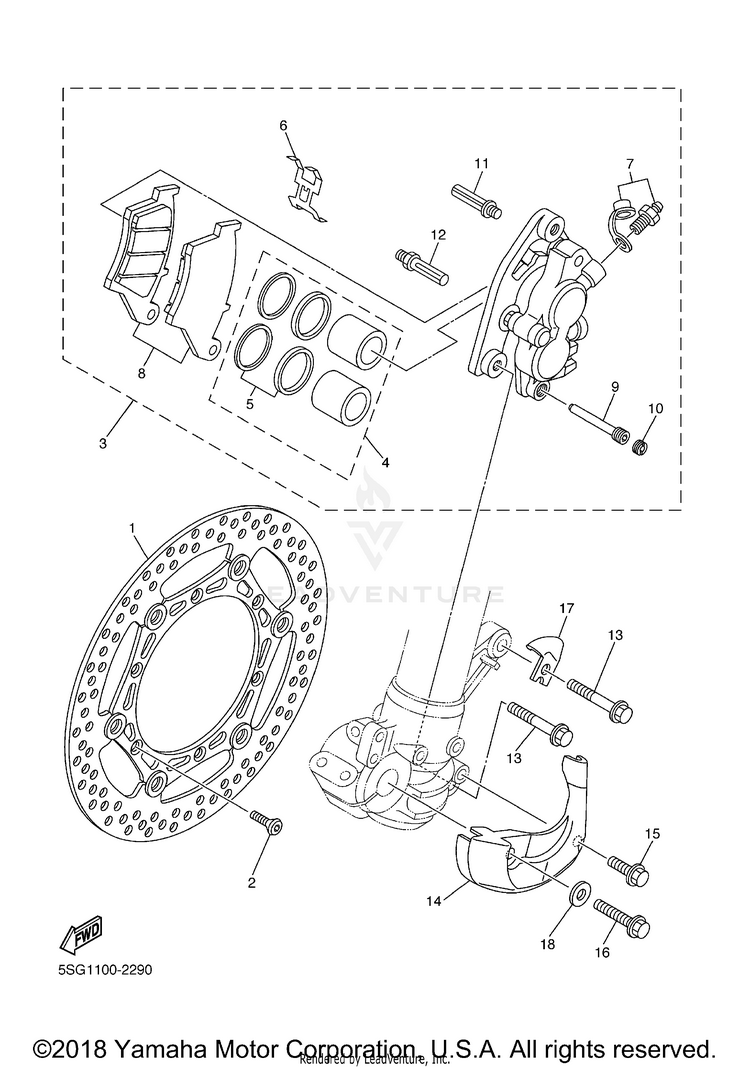

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15MV-2581T-00-00DISC BRAKE ASSY$218.99$170.81Usually ships in 7-10 business days
290151-06080-00

(replaces part #
90149-06327-00)

SCREW, COUNTERSUNK$2.35$2.0210+ In-Stock
35MV-2580T-11-00

(replaces part #
5MV-2580T-10-00)

CALIPER ASSY (LEFT)$339.99$280.93Not Shipping
44EW-W0057-00-00PISTON ASSY, CALIPER$110.99$86.573 In-Stock
53JD-25803-00-00

(replaces part #
3JD-W0047-00-00)

CALIPER SEAL KIT$23.99$18.718 In-Stock
65DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
736Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
85MV-W0045-01-00

(replaces part #
5MV-W0045-00-00)

BRAKE PAD KIT$42.99$33.7610+ In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
95DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
105DH-25916-00-00PLUG$10.99$8.5710+ In-Stock
113SP-25926-51-00BOLT$14.49$11.3010+ In-Stock
123SP-25914-51-00PIN, SLIDE$4.95$4.2610+ In-Stock
1395817-08035-00

(replaces part #
90105-08659-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
145DH-2314E-00-00COVER, HOSE$41.99$32.7510+ In-Stock
1595817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1695027-08020-00BOLT, FLANGE$9.49$7.409 In-Stock
175DH-25875-00-00HOLDER, BRAKE HOSE 1$18.49$14.42Not Shipping
1892907-08200-00WASHER$9.49$7.4010+ In-Stock
