2002 Yamaha YZ85 Handle Switch Lever OEM Parts Diagram

Submodel YZ85 - YZ85P - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

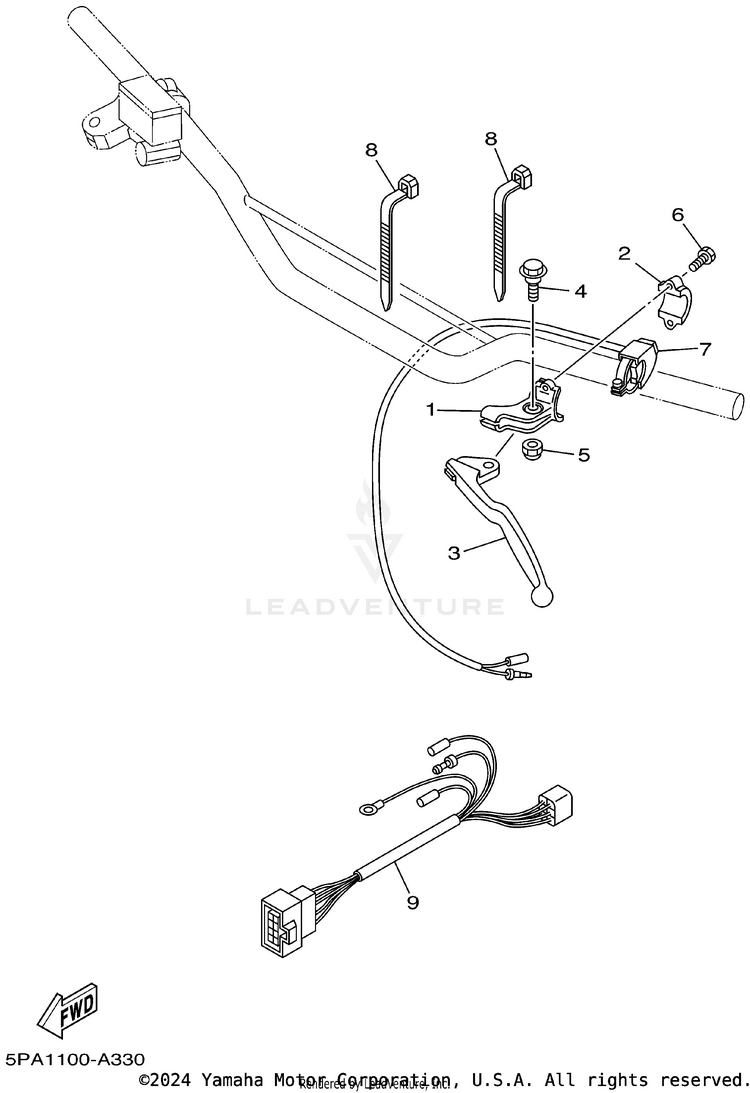

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138V-82911-00-00HOLDER, LEVER 1 | (5PA1)$42.99$33.533 In-Stock
238V-82913-00-00HOLDER, LEVER LOWER 1 | (5PA1)$25.99$20.279 In-Stock
34GY-83912-00-00LEVER 1 | (5PA1)$31.99$24.9510+ In-Stock
490109-06799-00BOLT | (5PA1)$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U | (5PA1)$2.90$2.4910+ In-Stock
697017-05016-00

(replaces part #
97007-05016-00)

BOLT | (5PA1)$3.55$3.0510+ In-Stock
723X-83976-01-00

(replaces part #
22W-83976-00-00)

SWITCH, HANDLE 1 | (5PA1)$41.99$32.758 In-Stock
890464-13077-00CLAMP | (5PA1)$9.49$7.4010+ In-Stock
95PA-82509-00-00WIRE, SUB LEAD | (5PA1)$61.99$48.35Usually ships in 7-10 business days
