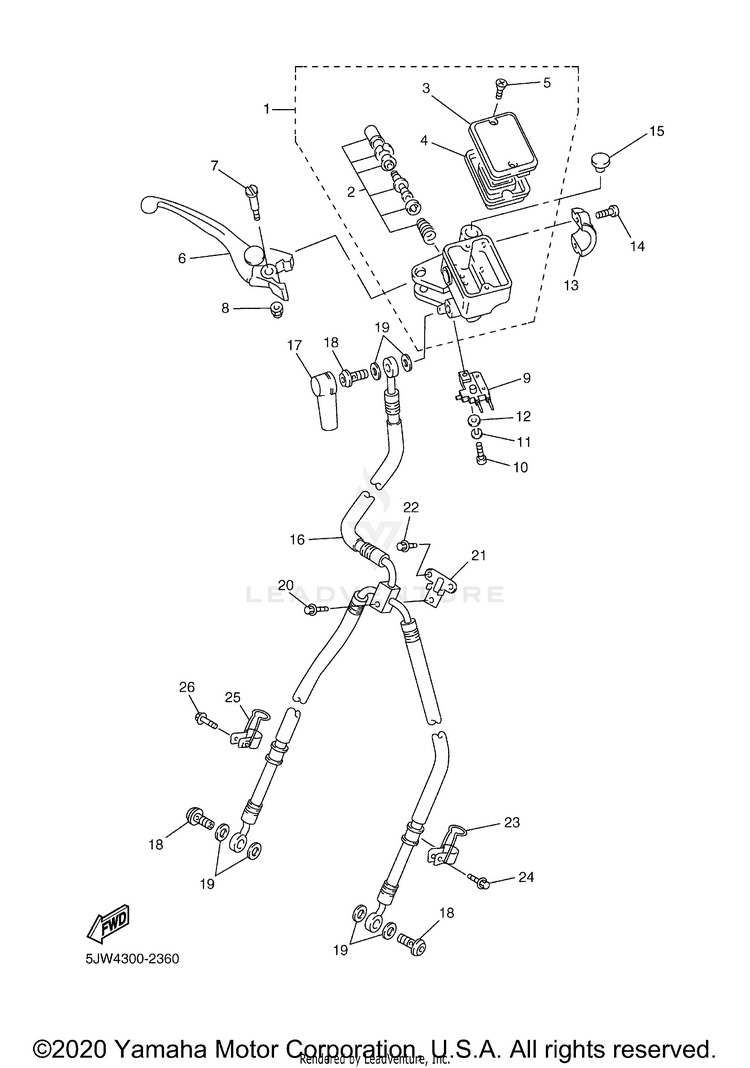

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15DM-W2587-01-00MASTER CYLINDER SUB ASSY$339.99$280.40Usually ships in 7-10 business days
25DM-W0041-50-00CYLINDER KIT, MASTER$82.99$64.73Usually ships in 7-10 business days
34HM-W2585-01-00RESERVOIR CAP SET$66.99$52.25Usually ships in 7-10 business days
44HM-25854-00-00DIAPHRAGM, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
598707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
65EB-83922-01-00LEVER 2$88.99$69.41Usually ships in 7-10 business days
73FV-2589F-00-00BOLT, LEVER$17.99$14.751 In-Stock
895617-06100-00NUT, U$2.90$2.4910+ In-Stock
94HM-83980-00-00FRONT STOP SWITCH ASSY$45.99$35.873 In-Stock
1098517-04012-00SCREW,PANHEAD$4.20$3.6110+ In-Stock
1192990-04100-00WASHER, SPRING-$1.0210+ In-Stock
1292990-04600-00WASHER, PLATE$0.99$0.907 In-Stock
134HM-25867-00-00BRACKET, MASTER CYLINDER$41.99$34.43Usually ships in 7-10 business days
1491317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1590338-09012-00PLUG$10.49$8.186 In-Stock
165JW-25872-01-00HOSE, BRAKE 1$182.76$142.55Usually ships in 7-10 business days
174L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1890401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
1990201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
2095027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
215JW-25886-00-00HOLDER, BRAKE HOSE$5.99$5.39Usually ships in 7-10 business days
2295027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
234KG-25887-00-00HOLDER, BRAKE HOSE$27.99$22.95Usually ships in 7-10 business days
2495024-06025-00BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
254KG-25876-01-00

(replaces part #
4KG-25876-00-00)

HOLDER, BRAKE HOSE 2$30.99$25.41Usually ships in 7-10 business days
2695024-06025-00BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
