2003 Yamaha TTR125 Front Wheel Lr OEM Parts Diagram

Submodel TTR125 - TTR125R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL LR

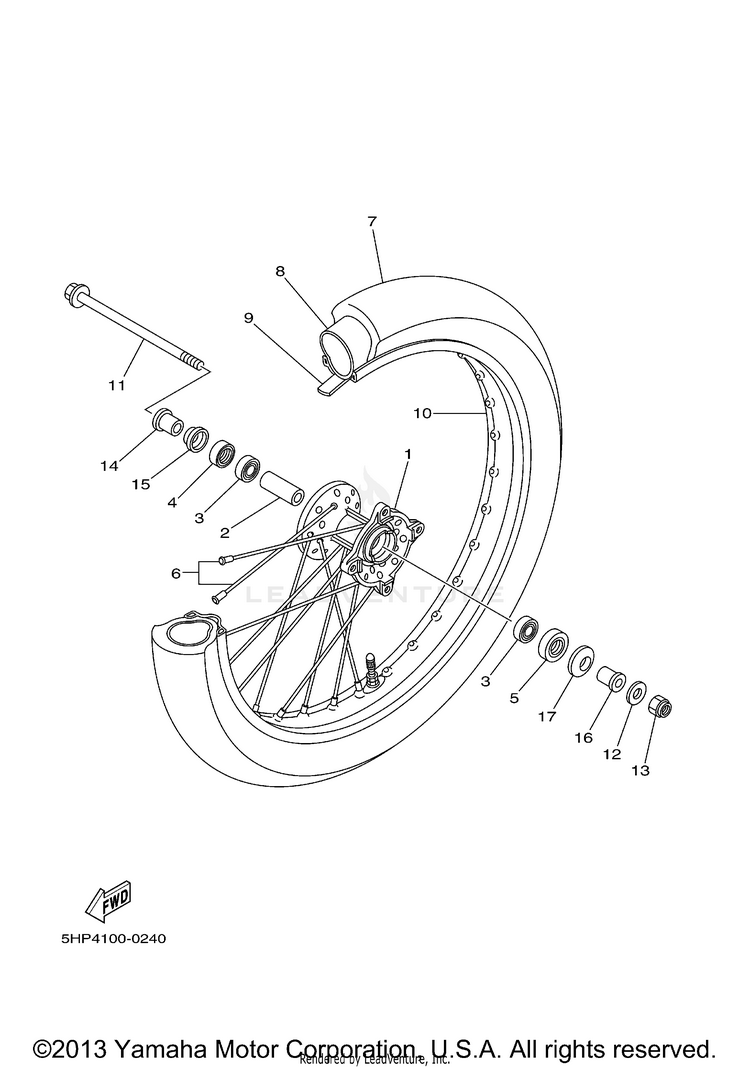

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HP-25111-10-00HUB, FRONT | 5HPH UR -LW$187.67$146.38Not Shipping
290560-12257-00SPACER | 5HPH UR -LW$19.49$15.201 In-Stock
393306-00108-00BEARING | 5HPH UR -LW$36.99$28.853 In-Stock
493106-18013-00OIL SEAL | 5HPH UR -LW$12.49$9.742 In-Stock
593102-18008-00OIL SEAL, SD-TYPE | 5HPH UR -LW$28.99$22.617 In-Stock
65HP-25104-10-00SPOKE SET, FRONT | 5HPH UR -LW$69.99$54.59Not Shipping
794107-19008-00TIRE (70/100-19 42M IX05H) | INOUE 5HPH UR -LW$50.99$42.51Not Shipping
894227-19292-00

(replaces part #
94225-19133-00)

TUBE (2.75-19)(3GX) | INOUE 5HPH UR -LW$41.99$32.752 In-Stock
994327-19111-00

(replaces part #
94320-19089-00)

BAND, RIM (2.00-19) | INOUE 5HPH UR -LW$16.49$12.867 In-Stock
1094414-19002-00RIM (1.40-19) | 5HPH UR -LW$210.99$164.574 In-Stock
113UN-25181-01-00

(replaces part #
3UN-25181-00-00)

AXLE, WHEEL | 5HPH UR -LW$22.99$17.936 In-Stock
1290201-12047-00

(replaces part #
90201-12749-00)

WASHER, PLATE | 5HPHUR -LW$9.49$7.404 In-Stock
1395617-12100-00NUT, U | 5HPH UR -LW$4.16$3.58
1490387-126F8-00COLLAR | 5HPH UR -LW$23.99$18.715 In-Stock
15462-25118-00-00COVER, HUB DUST | 5HPH UR -LW$17.99$14.03Not Shipping
1690387-12005-00COLLAR | 5HPH UR -LW$22.99$17.934 In-Stock
172K5-25118-00-00COVER, HUB DUST | 5HPH UR -LW$9.49$7.402 In-Stock
