2003 Yamaha WARRIOR 350 Starting Motor OEM Parts Diagram

Submodel WARRIOR - YFM350XRC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

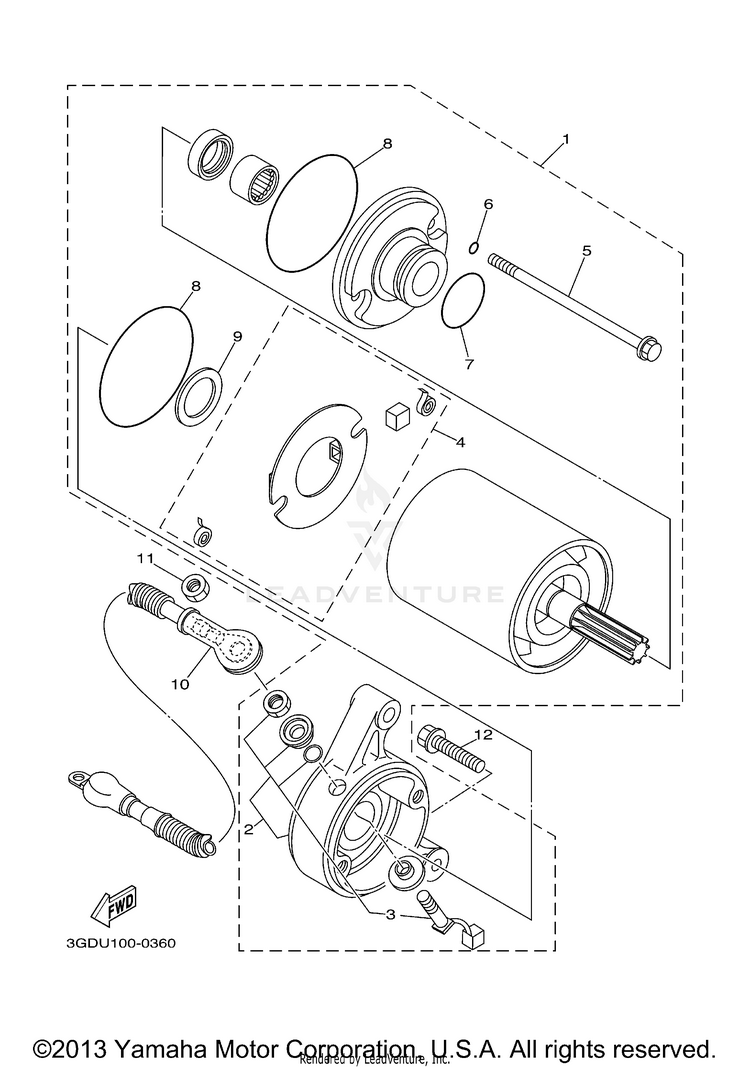

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-81890-00-00MOTOR ASSY$659.99$533.91Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$49.99$36.9910+ In-Stock
21UY-81820-51-00REAR BRACKET ASSY$59.99$46.79Usually ships in 7-10 business days
31UY-81818-50-00BRUSH AND BOLT$41.99$34.43Usually ships in 7-10 business days
48L6-81840-51-00

(replaces part #
8L6-81840-50-00)

BRUSH HOLDER ASSY$63.99$49.91Usually ships in 7-10 business days
53GD-81826-00-00BOLT, THROUGH$17.49$14.34Usually ships in 7-10 business days
68L6-81847-50-00O-RING$3.55$3.20Usually ships in 7-10 business days
793210-24235-00

(replaces part #
1UY-81847-50-00)

O-RING$8.49$7.078 In-Stock
84H7-81844-00-00

(replaces part #
4H7-81844-50-00)

O-RING$25.99$21.31Usually ships in 7-10 business days
94H7-81843-50-00WASHER 1$4.40$3.96Usually ships in 7-10 business days
104SH-81815-00-00

(replaces part #
1UY-81815-50-00)

CORD, STARTER MOTOR$85.99$67.07Not Shipping
1195380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
1295027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
