2003 Yamaha WR250F Exhaust OEM Parts Diagram

Submodel WR250F - WR250FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

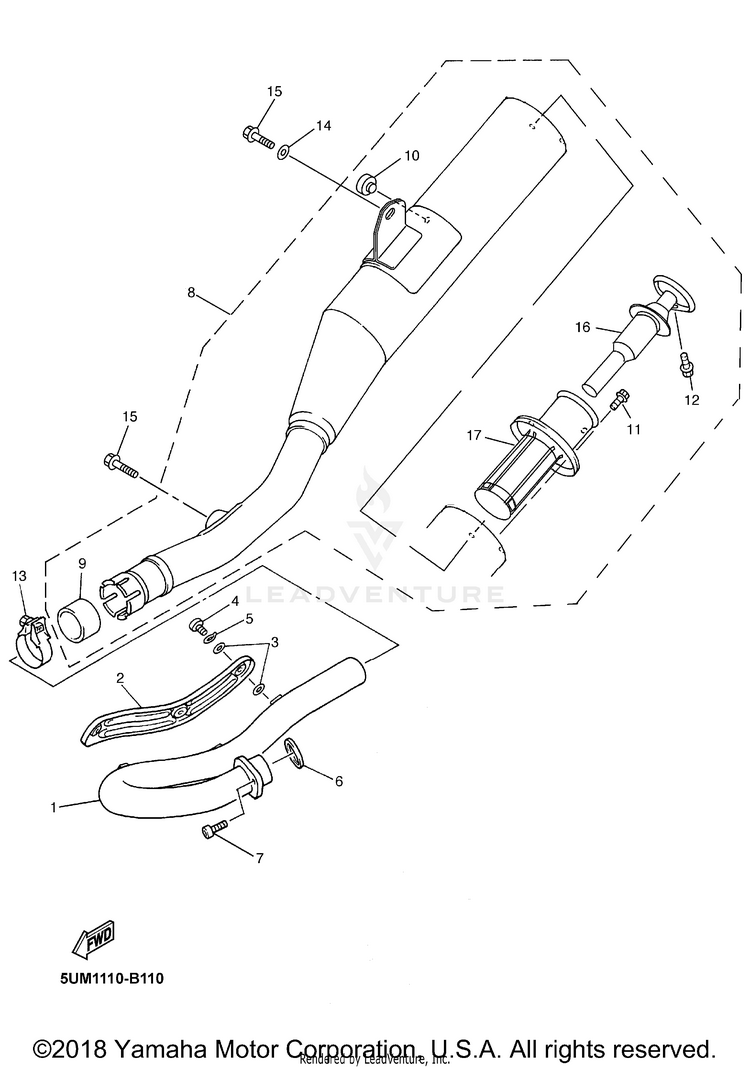

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-14611-00-00

(replaces part #
5NL-14611-00-00)

PIPE, EXHAUST 1$485.99$379.07Usually ships in 7-10 business days
25XC-14628-00-00

(replaces part #
5NL-14628-00-00)

PROTECTOR, EXHAUST PIPE$100.99$78.774 In-Stock
34BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
498980-06008-00SCREW, BIND-$1.2210+ In-Stock
590206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
65NL-14613-00-00GASKET, EXHAUST PIPE | INCL. IN TOP END GASKET KIT$15.49$12.0810+ In-Stock
791317-08020-00BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
85UM-14710-00-00MUFFLER ASSY 1$893.99$726.04Usually ships in 7-10 business days
95PH-14714-00-00GASKET, MUFFLER$47.99$37.432 In-Stock
102MC-F4181-00-00

(replaces part #
4FU-24181-00-00)

DAMPER, LOCATING 1$9.49$7.403 In-Stock
1195880-06010-00

(replaces part #
95804-06010-00)

BOLT, FLANGE$4.15$3.573 In-Stock
1295814-06016-00

(replaces part #
95804-06016-00)

BOLT, FLANGE$1.99$1.813 In-Stock
135BE-14788-00-00BAND, SILENCER$38.99$30.4110+ In-Stock
1490201-086P8-00WASHER, PLATE$5.49$4.2810+ In-Stock
1595817-08020-00BOLT, FLANGE$10.49$8.181 In-Stock
165BF-14752-00-00PIPE$120.99$94.37Not Shipping
175BF-14786-00-00ARRESTOR, SPARK$223.99$174.71Usually ships in 7-10 business days
