2003 Yamaha WR450F Handle Switch Lever OEM Parts Diagram

Submodel WR450F - WR450FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

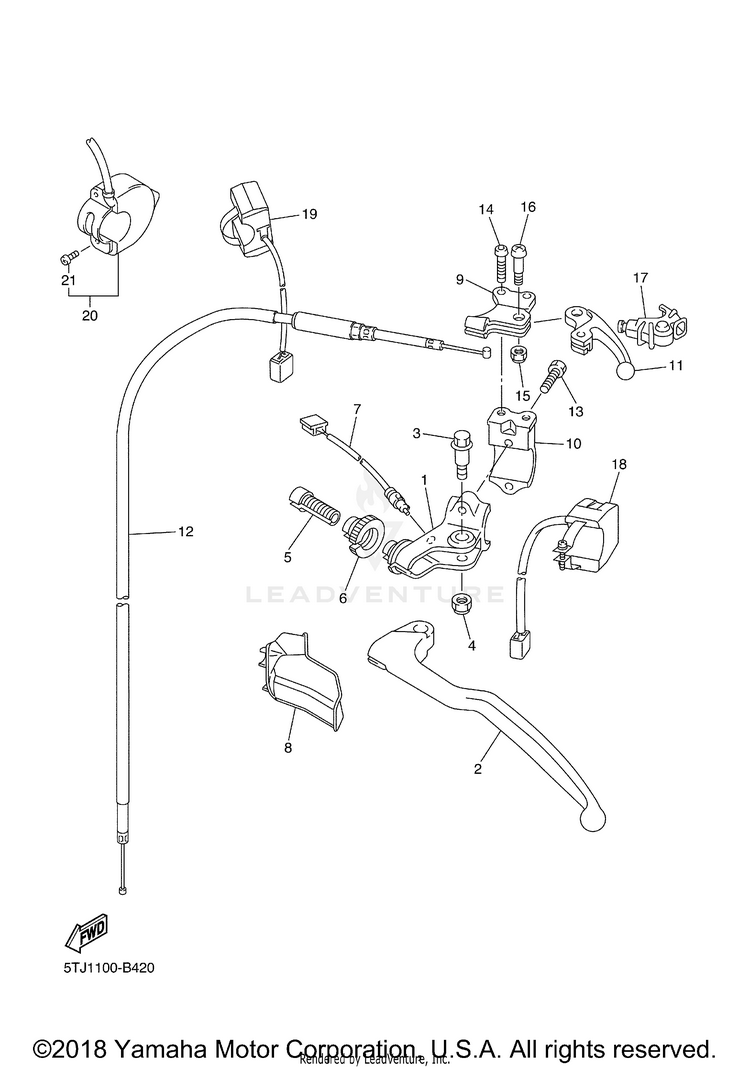

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TJ-82911-00-00HOLDER, LEVER 1$30.99$25.41Not Shipping
25TJ-83912-01-00

(replaces part #
5TJ-83912-00-00)

LEVER 1$36.99$28.853 In-Stock
390109-06027-00BOLT$12.49$9.744 In-Stock
495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
55TA-26337-00-00BOLT, ADJUSTING$28.99$22.614 In-Stock
65HD-83951-01-00

(replaces part #
5HD-83951-00-00)

BOLT, CABLE ADJUST$48.99$38.216 In-Stock
75TJ-82917-02-00

(replaces part #
5TJ-82917-00-00)

SWITCH$50.99$39.778 In-Stock
85TJ-26372-00-00COVER, HANDLE LEVER 1$19.99$16.39Not Shipping
95TA-82946-01-00

(replaces part #
5TA-82946-00-00)

HOLDER, STARTER LEVE$24.26$19.89Not Shipping
105TA-82913-02-00

(replaces part #
5TA-82913-01-00)

HOLDER, LEVER LOWER$16.99$13.93Usually ships in 7-10 business days
115TA-83941-00-00LEVER, STARTER$21.99$17.1510+ In-Stock
125TA-26334-00-00CABLE, STARTER 2$42.99$33.533 In-Stock
1397017-05016-00

(replaces part #
97007-05016-00)

BOLT$3.55$3.0510+ In-Stock
1492017-05012-00BOLT, BUTTON HEAD$3.85$3.314 In-Stock
1595617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1690149-05162-00

(replaces part #
90149-05163-00)

SCREW$10.49$8.1810+ In-Stock
175TA-26339-00-00BOOT$7.49$5.842 In-Stock
185UM-83976-E2-00

(replaces part #
5TJ-83976-00-00)

SWITCH, ENGINE STOP$76.99$60.053 In-Stock
195TJ-83976-13-00

(replaces part #
5TJ-83976-10-00)

SWITCH, HANDLE 1$86.99$67.851 In-Stock
205NG-83976-50-00SWITCH, HANDLE 1$58.99$46.01Not Shipping
2198507-04014-00SCREW, PAN HEAD$2.00$1.7210+ In-Stock
