2003 Yamaha YZ250F Electrical 1 OEM Parts Diagram

Submodel YZ250F - YZ250FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

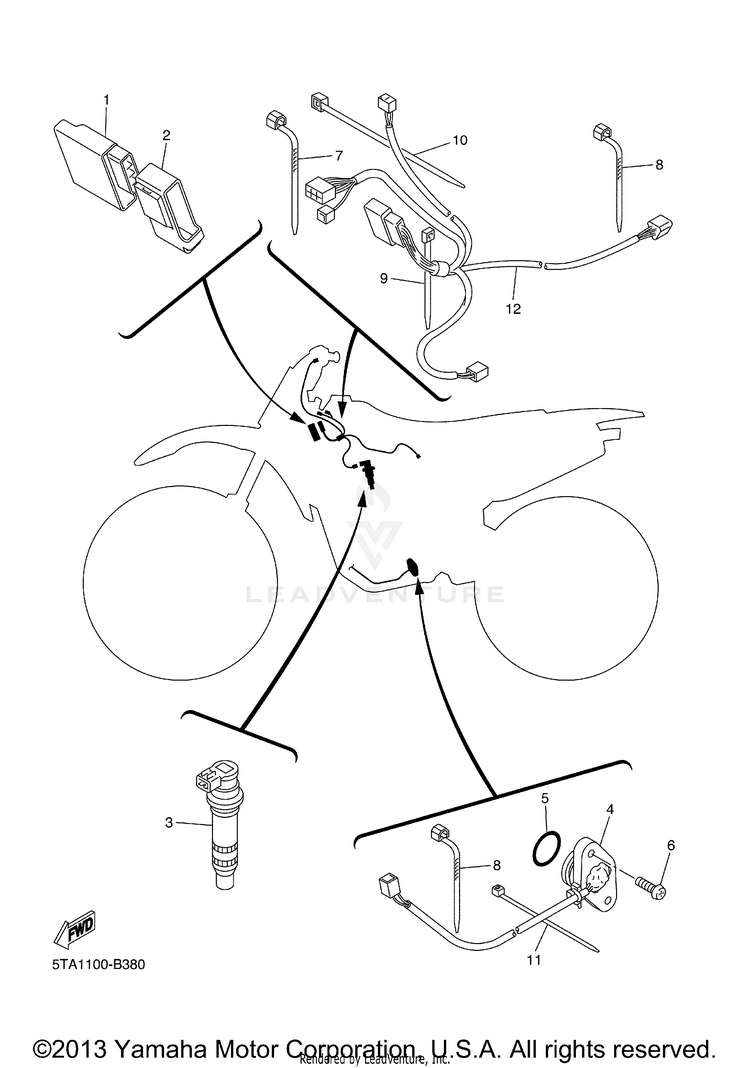

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UL-85540-00-00C.D.I. UNIT ASSY$376.10$293.36Usually ships in 7-10 business days
25TA-85546-00-00BAND$9.99$8.99Not Shipping
35UL-82310-10-00

(replaces part #
5UL-82310-00-00)

IGNITION COIL ASSY$185.99$145.074 In-Stock
45TA-82540-00-00NEUTRAL SWITCH ASSY$77.99$60.83Not Shipping
593210-21001-00

(replaces part #
93210-21276-00)

O-RING$6.49$5.0610+ In-Stock
698907-05016-00SCREW, BIND$9.49$7.4010+ In-Stock
790464-13077-00CLAMP$9.49$7.4010+ In-Stock
890464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
91UA-82591-00-00

(replaces part #
90465-13152-00)

BAND$5.49$4.2810+ In-Stock
1090464-15152-00

(replaces part #
90465-13275-00)

CLAMP$6.49$5.068 In-Stock
115Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
125TA-82509-02-00

(replaces part #
5TA-82509-00-00)

WIRE, SUB LEAD$117.99$92.03Not Shipping
