2004 Yamaha BIG BEAR 2x4 400 Front Fender OEM Parts Diagram

Submodel BIG BEAR 400 2WD - YFM40S - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

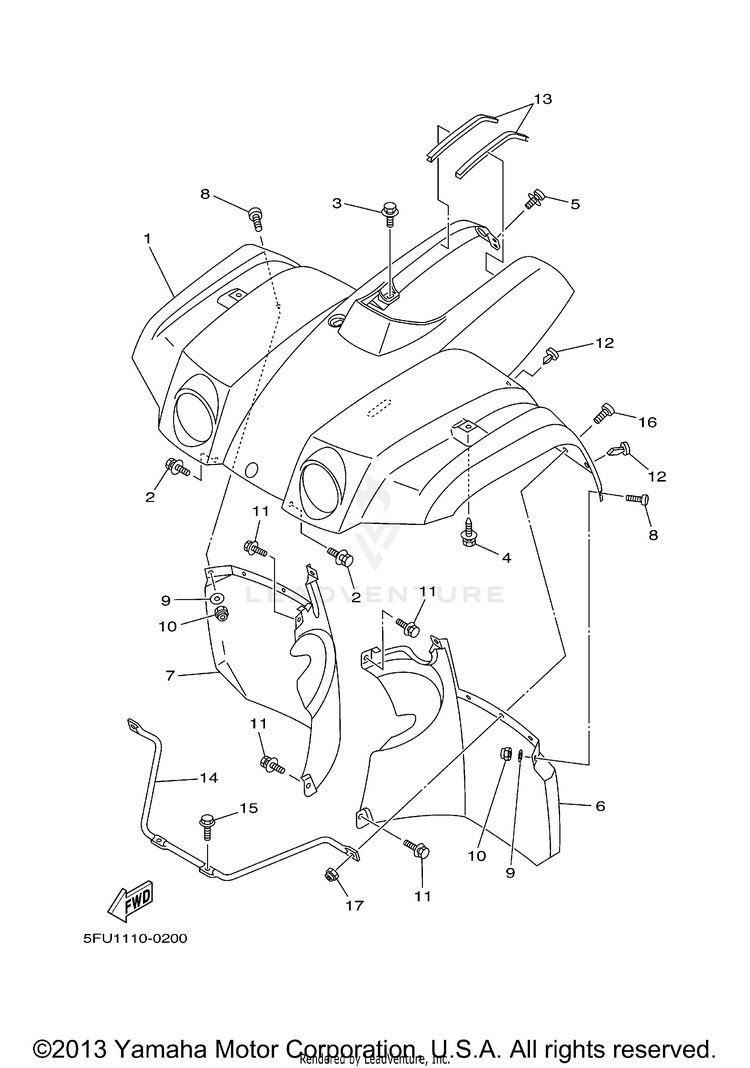

FRONT FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5FU-F1500-E0-00

(replaces part #
5FU-F1500-40-00)

FRONT FENDER ASSY | Use for Color Dark Purplish Blue Solid N ( DPBSN / 0891 )$250.99$195.77Not Shipping
15FU-F1500-D0-00

(replaces part #
5FU-F1500-10-00)

FRONT FENDER ASSY | Use for Color PASTEL DEEP GREEN ( PDG / 00K0 )-$351.97Usually ships in 7-10 business days
290119-06079-00BOLT, WITH WASHER-$4.4410+ In-Stock
390119-06226-00

(replaces part #
90119-06060-00)

BOLT, WITH WASHER$2.80$2.4110+ In-Stock
490119-06226-00

(replaces part #
90119-06060-00)

BOLT, WITH WASHER$2.80$2.4110+ In-Stock
590159-06059-00SCREW, WITH WASHER$11.49$8.9610+ In-Stock
65FU-F1521-00-00FLAP, FRONT FENDER | (YMUS)$59.99$49.68Not Shipping
75FU-F1561-00-00FLAP 2 | (YMUS)$57.99$45.23Not Shipping
890111-06814-00

(replaces part #
90110-06836-00)

BOLT, HEX. SOCKET BUTTON | (YMUS)$2.00$1.9010+ In-Stock
990201-068M4-00WASHER, PLATE | (YMUS)$2.30$2.0710+ In-Stock
1095617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1190119-06079-00BOLT, WITH WASHER-$4.4410+ In-Stock
1290269-08813-00RIVET | (YMUS)$0.90$0.7710+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
135FU-2171L-00-00MOLE, SIDE COVER 1$8.49$6.623 In-Stock
145FU-F1513-00-00STAY, FENDER 1 | (YMUS)$95.99$86.85Usually ships in 7-10 business days
1595817-06016-00

(replaces part #
9582P-06016-00)

BOLT, FLANGE | (YMUS)$1.95$1.6810+ In-Stock
1690111-06814-00

(replaces part #
90110-06836-00)

BOLT, HEX. SOCKET BUTTON | (YMUS)$2.00$1.9010+ In-Stock
1795617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
