2004 Yamaha BIG BEAR 4X4 400 Front Master Cylinder OEM Parts Diagram

Submodel BIG BEAR 400 4X4 - YFM40FS - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

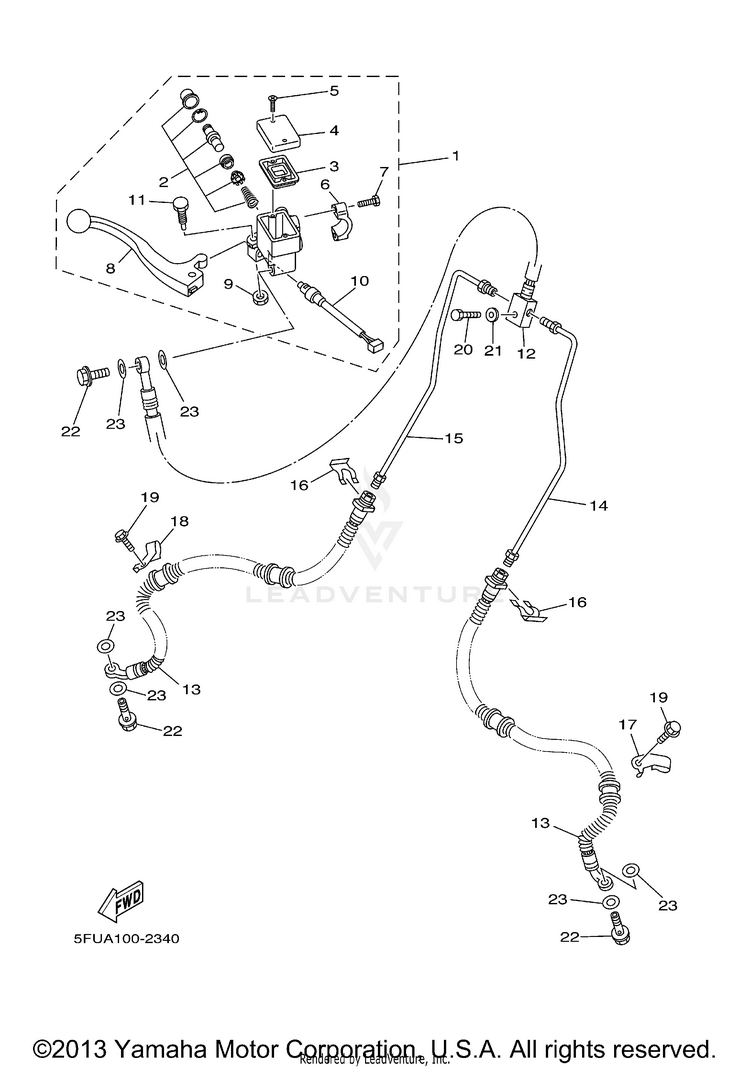

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KM-2583T-01-00MASTER CYLINDER ASSY$339.99$265.194 In-Stock
28CR-W0041-00-00CYLINDER KIT, MASTER$62.99$49.133 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.314 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
45JX-25852-01-00CAP, RESERVOIR$28.99$22.611 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
65GH-25867-00-00BRACKET, MASTER CYLINDER$28.99$23.77Usually ships in 7-10 business days
75EB-26332-00-00BOLT$8.49$6.622 In-Stock
85KM-83922-00-00LEVER 2$41.99$32.752 In-Stock
995617-06100-00

(replaces part #
95606-06100-00)

NUT, U$2.90$2.4910+ In-Stock
105LP-83980-00-00FRONT STOP SWITCH ASSY$70.99$55.372 In-Stock
111FK-2589F-00-00BOLT, LEVER$5.99$4.673 In-Stock
125FU-F5872-10-00

(replaces part #
5FU-F5872-00-00)

HOSE,BRAKE 1 | (YMUS)$46.99$38.53Usually ships in 7-10 business days
135FU-F5873-00-00HOSE, BRAKE 2 | (YMUS)$56.99$44.45Not Shipping
145FU-F5871-00-00PIPE, BRAKE | (YMUS)$11.49$9.42Usually ships in 7-10 business days
155FU-F5882-00-00PIPE, BRAKE 2 | (YMUS)$11.49$9.42Usually ships in 7-10 business days
162GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
175FU-F5875-00-00HOLDER, BRAKE HOSE 1 | (YMUS)$61.99$52.03Usually ships in 7-10 business days
185FU-F5876-00-00HOLDER, BRAKE HOSE 2 | (YMUS)$5.74$5.17Usually ships in 7-10 business days
1995817-06012-00

(replaces part #
9582P-06012-00)

BOLT, FLANGE | (YMUS)$1.95$1.7710+ In-Stock
2097017-08030-00

(replaces part #
97027-08030-00)

BOLT$10.49$8.182 In-Stock
2192907-08600-00WASHER, PLATE$3.25$2.80
2290401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2390201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
