2004 Yamaha KODIAK 400 4x4 Auto Headlight OEM Parts Diagram

Submodel KODIAK 400 HUNTER EDITION - YFM4FAHS - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

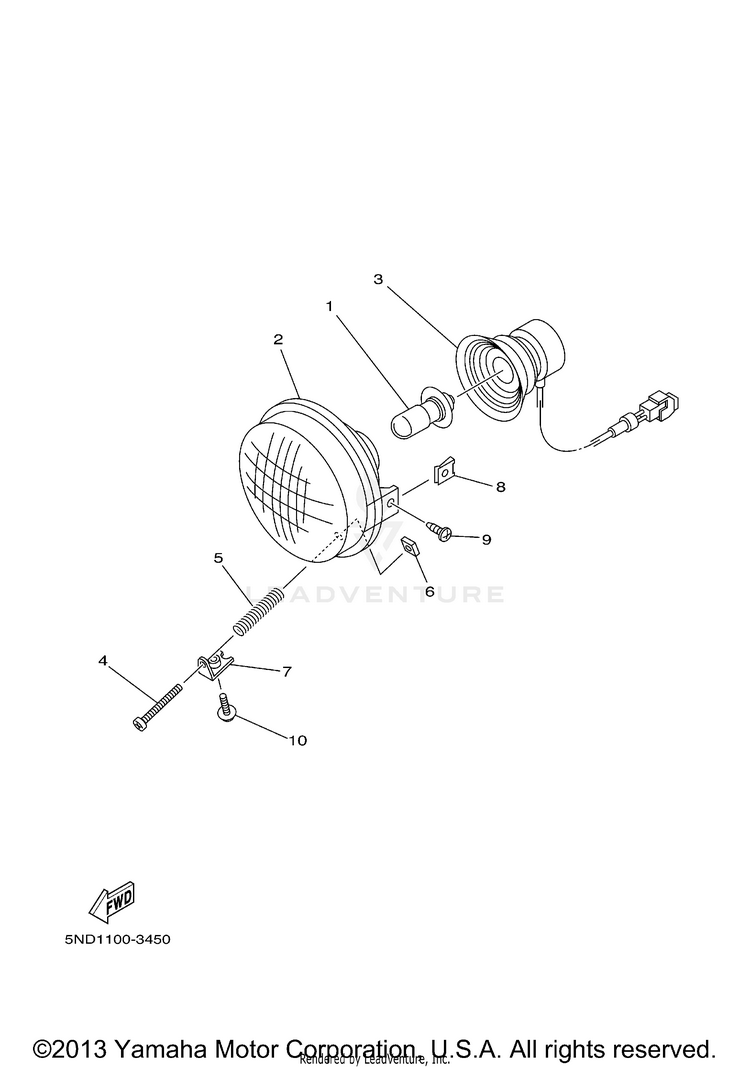

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-84314-01-00

(replaces part #
5FU-H4314-00-00)

BULB (12V-30/30W) | (YMUS)$42.99$33.5310+ In-Stock
25KM-84300-20-00

(replaces part #
5FU-H4320-00-00)

HEADLIGHT ASSY | (YMUS)$70.99$55.376 In-Stock
35KM-84300-20-00

(replaces part #
5FU-H4340-00-00)

HEADLIGHT ASSY | (YMUS)$70.99$55.376 In-Stock
498507-03540-00SCREW, PAN HEAD$2.35$2.0210+ In-Stock
52GU-84332-00-00SPRING, SCREW$8.49$6.628 In-Stock
62GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
75GH-84703-00-00BRACKET$8.49$7.64Usually ships in 7-10 business days
890183-05008-00NUT, SPRING$10.49$8.1810+ In-Stock
998902-05016-00

(replaces part #
90150-05802-00)

SCREW, BIND | (YMUS)$1.85$1.5910+ In-Stock
1090159-05044-00

(replaces part #
90159-05022-00)

SCREW, WITH WASHER$4.65$4.004 In-Stock
