2004 Yamaha RAPTOR 660 Front Fender OEM Parts Diagram

Submodel 660R RAPTOR - YFM660RS - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER

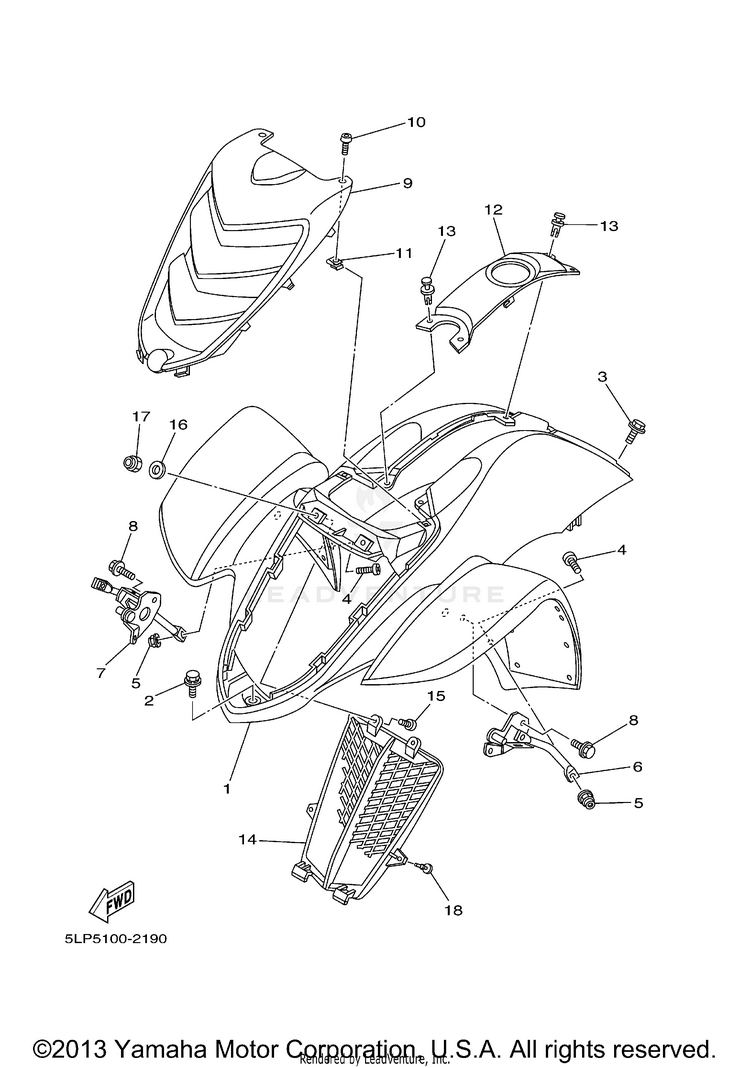

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5LP-W2151-20-00FRONT FENDER COMP. | Use for Color Bluish White Solid 1 ( BWS1 / 0892 )$334.31$260.76Not Shipping
-5LP-2171A-00-00COVER, TOP | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )$16.99$13.25Not Shipping
-5LP-21556-E0-00FENDER, FRONT 2 | Use for Color Bluish White Solid 1 ( BWS1 / 0892 )$151.97$118.54Not Shipping
15LP-W2151-00-00FRONT FENDER COMP. | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )$320.38$253.40Not Shipping
290119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
390119-06118-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
490149-06306-00SCREW$3.65$3.1410+ In-Stock
595604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
65LP-21513-00-00STAY, FENDER 1$58.99$46.01Usually ships in 7-10 business days
75LP-21514-00-00STAY, FENDER 2$128.99$100.61Usually ships in 7-10 business days
895817-08014-00

(replaces part #
95807-08014-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
95LP-21556-00-00FENDER, FRONT 2 | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )$68.99$53.81Not Shipping
1090111-05059-00

(replaces part #
90110-05201-00)

BOLT,HEX. SOCKET BUT$2.80$2.7610+ In-Stock
1190183-05008-00NUT, SPRING$10.49$8.1810+ In-Stock
125LP-2171A-20-00COVER, TOP | Use for Color Bluish White Solid 1 ( BWS1 / 0892 )$17.99$14.75Not Shipping
1390269-06002-00RIVET$9.49$7.4010+ In-Stock
145LP-12467-10-00COVER, RADIATOR$59.99$46.79Usually ships in 7-10 business days
1590154-05011-00SCREW, BINDING$4.95$4.268 In-Stock
1690201-05725-00WASHER, PLATE$10.49$8.606 In-Stock
1795617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1890480-05201-00GROMMET$9.49$7.404 In-Stock
