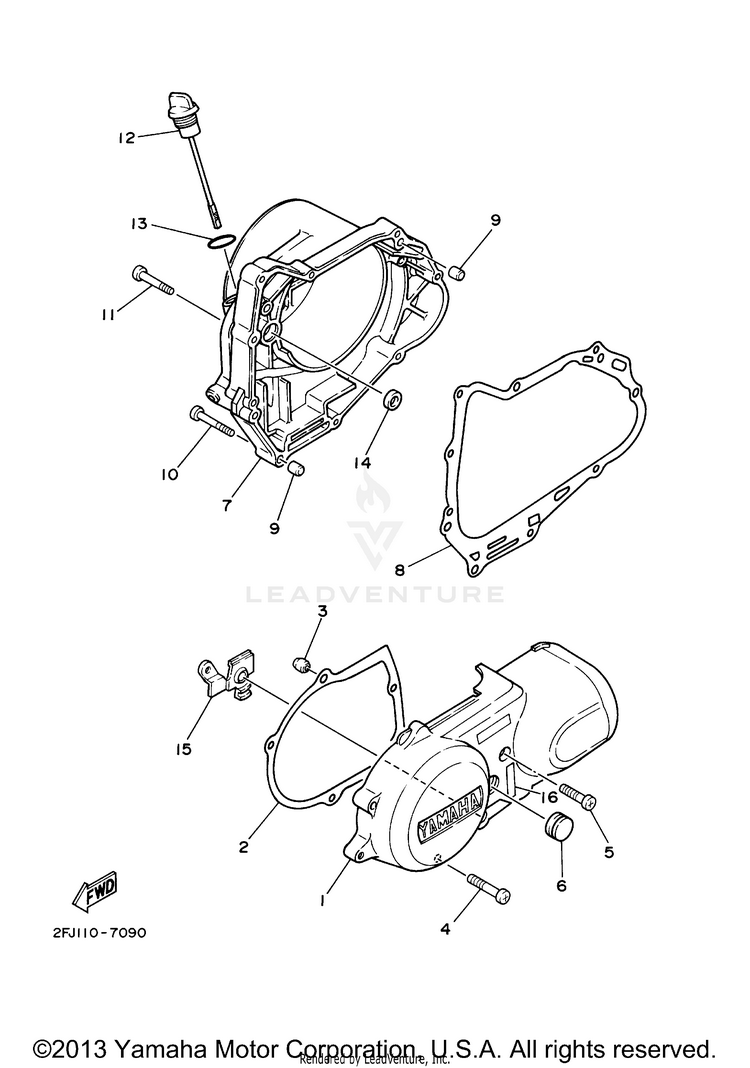

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122F-15411-01-00COVER, CRANKCASE 1$88.99$69.41Usually ships in 7-10 business days
23GB-15451-00-00GASKET, CRANKCASE COVER 1$35.99$28.078 In-Stock
399530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
498507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
598517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
622F-15417-00-00COVER, CAP$3.30$2.84Not Shipping
72FJ-15421-00-00COVER, CRANKCASE 2$119.99$93.59Usually ships in 7-10 business days
83GB-15461-00-00GASKET, CRANKCASE COVER 2$23.99$18.712 In-Stock
999530-10120-00PIN, DOWEL$3.35$2.8810+ In-Stock
1098507-06045-00SCREW, PAN HEAD$3.40$2.9210+ In-Stock
1198507-06035-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1255X-15362-10-00

(replaces part #
55X-15362-02-00)

PLUG, OIL LEVEL$21.99$17.155 In-Stock
1393210-19123-00O-RING$8.99$7.0110+ In-Stock
1493101-10142-00OIL SEAL$9.49$7.4010+ In-Stock
1590209-11269-00WASHER$32.99$27.05Usually ships in 7-10 business days
164EM-15443-01-00EMBLEM$4.45$4.00Usually ships in 7-10 business days
