2004 Yamaha TTR90E Frame OEM Parts Diagram

Submodel TT-R90E - TTR90ES - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

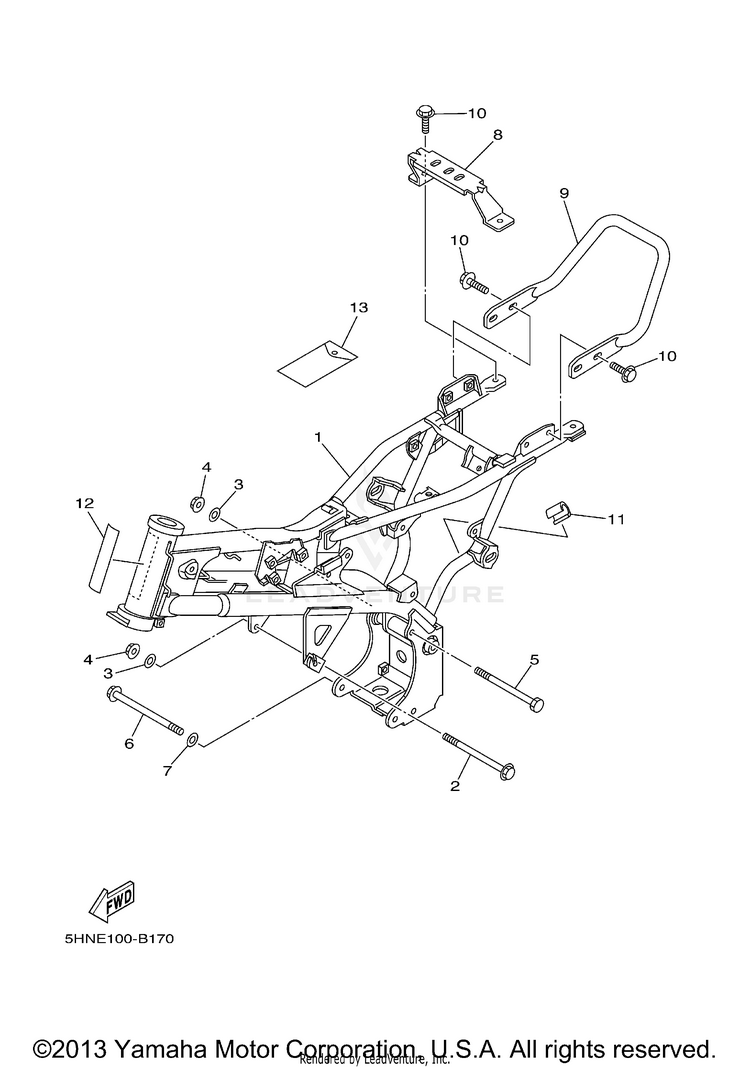

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HN-21110-10-00FRAME COMP.$597.99$466.43Usually ships in 7-10 business days
290105-08024-00BOLT, FLANGE$8.49$6.624 In-Stock
392907-08200-00WASHER$9.49$7.4010+ In-Stock
495707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
590109-08386-00BOLT$8.49$7.64Usually ships in 7-10 business days
690109-101A0-00

(replaces part #
90105-10052-00)

BOLT,WASHER BASED$18.49$14.4210+ In-Stock
792907-10200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
85HN-21391-00-00BRACKET, SEAT$18.99$15.57Usually ships in 7-10 business days
95HN-2127A-00-00HANDLE, STANDING$65.99$51.47Usually ships in 7-10 business days
1095817-06014-00BOLT, FLANGE-$2.8610+ In-Stock
115HN-2139X-00-00DAMPER$1.35$1.222 In-Stock
125HN-2179X-00-00PLATE, EPA$1.85$1.66Not Shipping
135HN-28100-01-00

(replaces part #
5HN-28100-00-00)

TOOL KIT$16.49$13.52Usually ships in 7-10 business days
