2004 Yamaha Virago XV250 Electrical 1 OEM Parts Diagram

Submodel VIRAGO 250 - XV250SC - 2004

Shop Aftermarket Parts

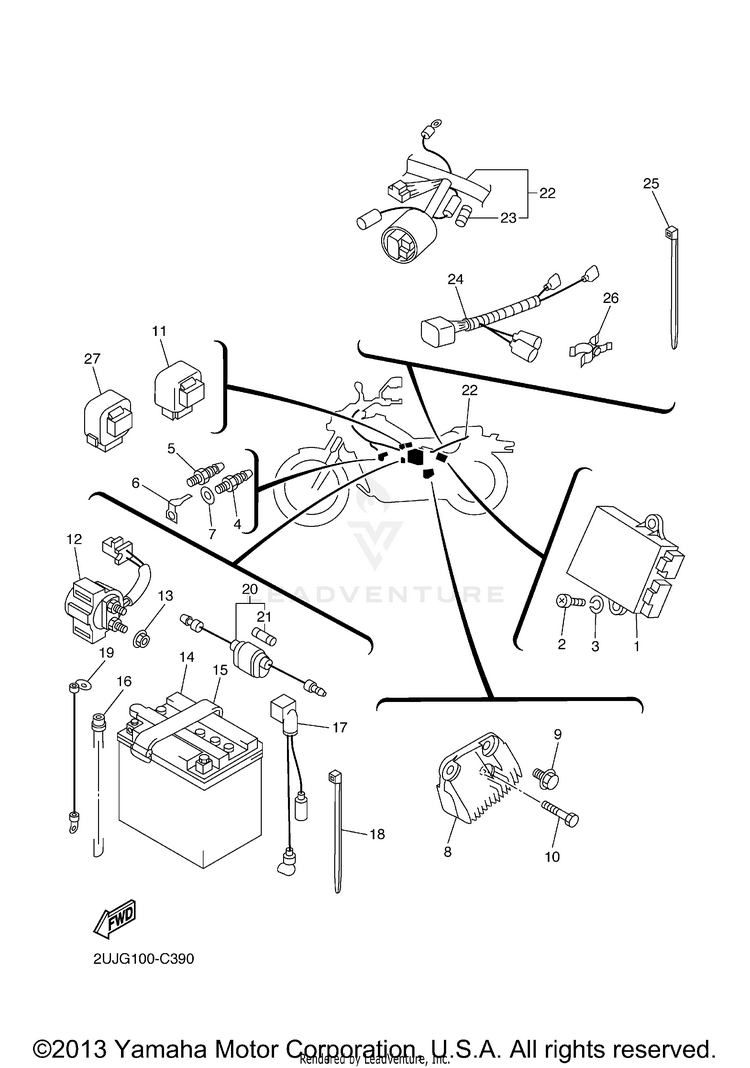

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2UJ-82590-10-00WIRE HARNESS ASSY$244.99$193.80Usually ships in 7-10 business days
-5FU-83790-01-00

(replaces part #
5FU-83790-00-00)

HEATER ASSY$34.99$27.5110+ In-Stock
12UJ-82305-00-00IGNITOR UNIT ASSY$464.99$414.55Usually ships in 7-10 business days
298507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
392907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
45FU-83790-20-00HEATER ASSY (30W)$53.99$42.114 In-Stock
55FU-83790-20-00HEATER ASSY (30W)$53.99$42.114 In-Stock
65FU-82103-00-00TERMINAL 1$8.49$6.622 In-Stock
790201-08016-00WASHER, PLATE$9.49$7.404 In-Stock
83DM-81960-01-00RECTIFIER & REGULATOR ASSY$276.99$216.05Usually ships in 7-10 business days
990119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
1097017-06030-00

(replaces part #
97007-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
112UJ-81950-02-00

(replaces part #
2UJ-81950-00-00)

RELAY ASSY (G8R-30Y-A)$71.99$56.15Usually ships in 7-10 business days
1236Y-81940-00-00STARTER RELAY ASSY$166.99$130.25Usually ships in 7-10 business days
1395707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
14YB1-0LA20-00-00

(replaces part #
BTY-YB10L-A2-00)

YB10LA2 YUASA BATTE$104.99$87.14Usually ships in 7-10 business days
15118-82131-00-00BAND, BATTERY$24.99$20.49Usually ships in 7-10 business days
1690445-08719-00

(replaces part #
90445-08248-00)

HOSE$10.99$9.01Not Shipping
172UJ-82115-01-00WIRE, PLUS LEAD$32.99$27.05Usually ships in 7-10 business days
185Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
192UJ-82116-00-00WIRE, MINUS LEAD$14.49$11.88Usually ships in 7-10 business days
202UJ-82150-02-00FUSE HOLDER ASSY$17.99$14.75Usually ships in 7-10 business days
211A0-82161-00-00

(replaces part #
148-82151-00-00)

FUSE (12V-20A)$8.49$6.6210+ In-Stock
223BG-82590-20-00WIRE HARNESS ASSY | UR CA$211.99$168.20Usually ships in 7-10 business days
231E6-82151-00-00FUSE (10A)$8.49$7.64Usually ships in 7-10 business days
242UJ-82509-01-00

(replaces part #
2UJ-82509-00-00)

WIRE, SUB LEAD$17.99$14.75Usually ships in 7-10 business days
255Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
2690464-16119-00CLAMP$4.85$4.36Usually ships in 7-10 business days
273GM-83350-03-00

(replaces part #
3GM-83350-01-00)

FLASHER RELAY ASSY$88.99$69.41Usually ships in 7-10 business days
