2004 Yamaha WARRIOR 350 Valve OEM Parts Diagram

Submodel WARRIOR - YFM35XSC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

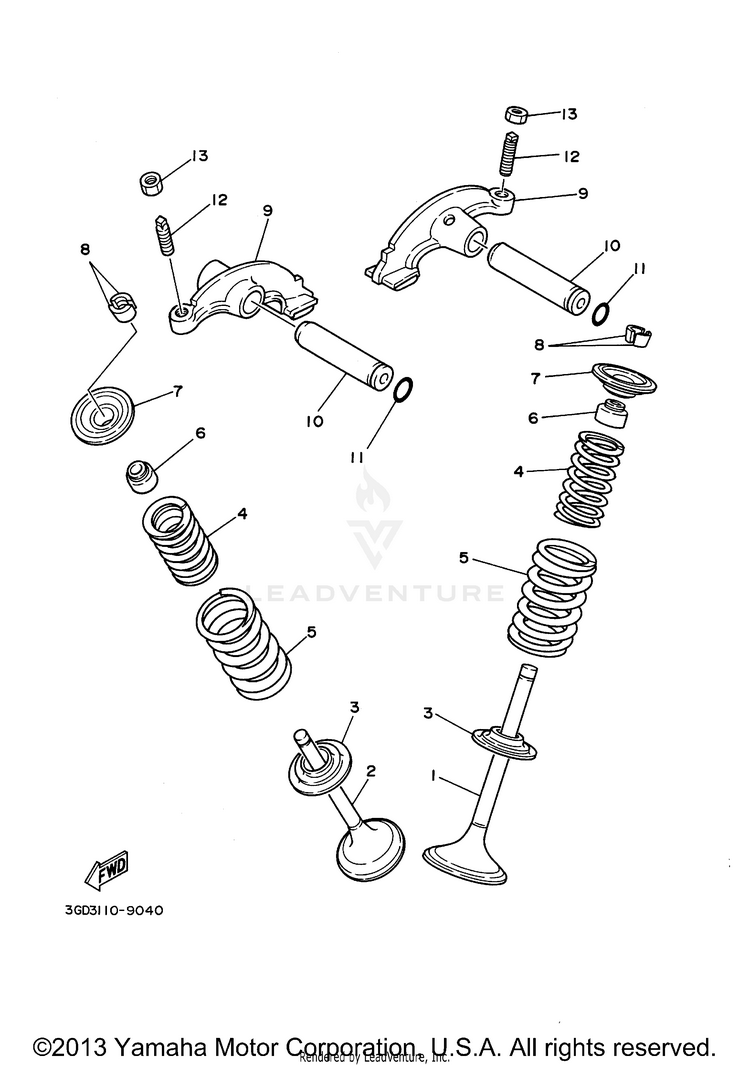

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-12111-01-00VALVE, INTAKE$87.99$68.634 In-Stock
21UY-12121-01-00VALVE, EXHAUST$102.99$80.336 In-Stock
33Y1-12116-00-00SEAT, VALVE SPRING$17.99$14.037 In-Stock
41UY-12113-01-00SPRING, VALVE INNER$19.99$15.594 In-Stock
51UY-12114-01-00SPRING, VALVE OUTER$30.99$24.174 In-Stock
61J7-12119-01-00SEAL, VALVE STEM$22.99$17.9310+ In-Stock
73Y1-12117-01-00RETAINER, VALVE SPRING$18.99$14.816 In-Stock
81J7-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
93GD-12151-01-00

(replaces part #
3GD-12151-00-00)

ARM, VALVE ROCKER-$90.074 In-Stock
103Y1-12156-00-00SHAFT, ROCKER 2$71.99$56.15Usually ships in 7-10 business days
1193210-09350-00

(replaces part #
93210-09165-00)

O-RING$7.49$5.8410+ In-Stock
1231G-12159-02-00SCREW, VALVE ADJUSTING$10.99$8.574 In-Stock
1331G-12158-00-00NUT, LOCK$7.49$5.845 In-Stock
