2004 Yamaha XT225 Serow Front Wheel OEM Parts Diagram

Submodel XT225 - XT225SC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

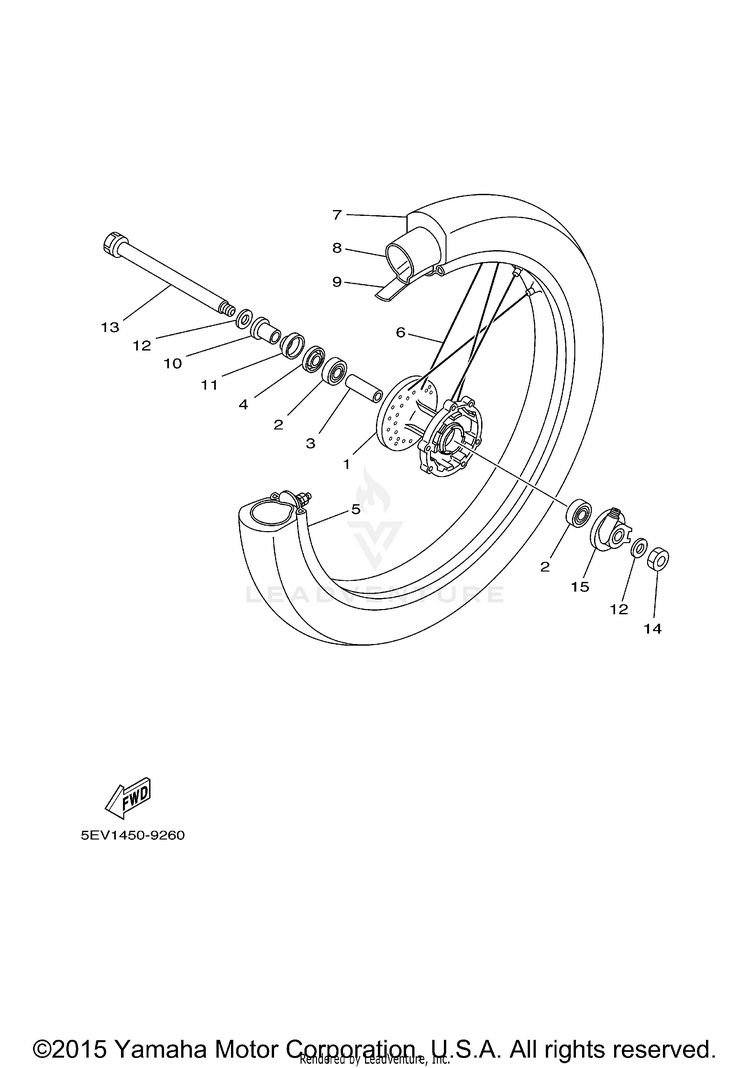

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134X-25111-02-35HUB, FRONT | SL$228.99$178.61Usually ships in 7-10 business days
293306-20205-00BEARING | KOYO$42.99$33.5310+ In-Stock
390560-15290-00SPACER$20.99$16.372 In-Stock
493102-20281-00OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
594416-21008-00RIM (1.60-21)$398.99$311.21Usually ships in 7-10 business days
61KH-25104-00-00SPOKE SET, FRONT$106.99$83.451 In-Stock
794127-212X0-00TIRE (MCS 2.75-21 4PR TW27) | BRIDGESTONE$111.99$87.35Not Shipping
894227-21123-00TUBE (MCS 2.75/3.00-21 TR6) | BRIDGESTONE$51.99$40.5510+ In-Stock
994330-21084-00BAND, RIM (1.60-21) | BRIDGESTONE$18.49$14.4210+ In-Stock
1090387-15600-00COLLAR$20.99$16.372 In-Stock
11322-25118-00-00COVER, HUB DUST$18.99$14.8110+ In-Stock
1290201-15797-00WASHER, PLATE$10.49$8.1810+ In-Stock
1334X-25181-00-00

(replaces part #
4JG-25181-00-00)

AXLE, WHEEL$74.99$58.49Usually ships in 7-10 business days
1495617-14100-00

(replaces part #
95607-14100-00)

NUT, U$11.49$8.963 In-Stock
1534X-25190-01-00GEAR UNIT ASSY$182.99$142.73Usually ships in 7-10 business days
