STAND FOOTREST

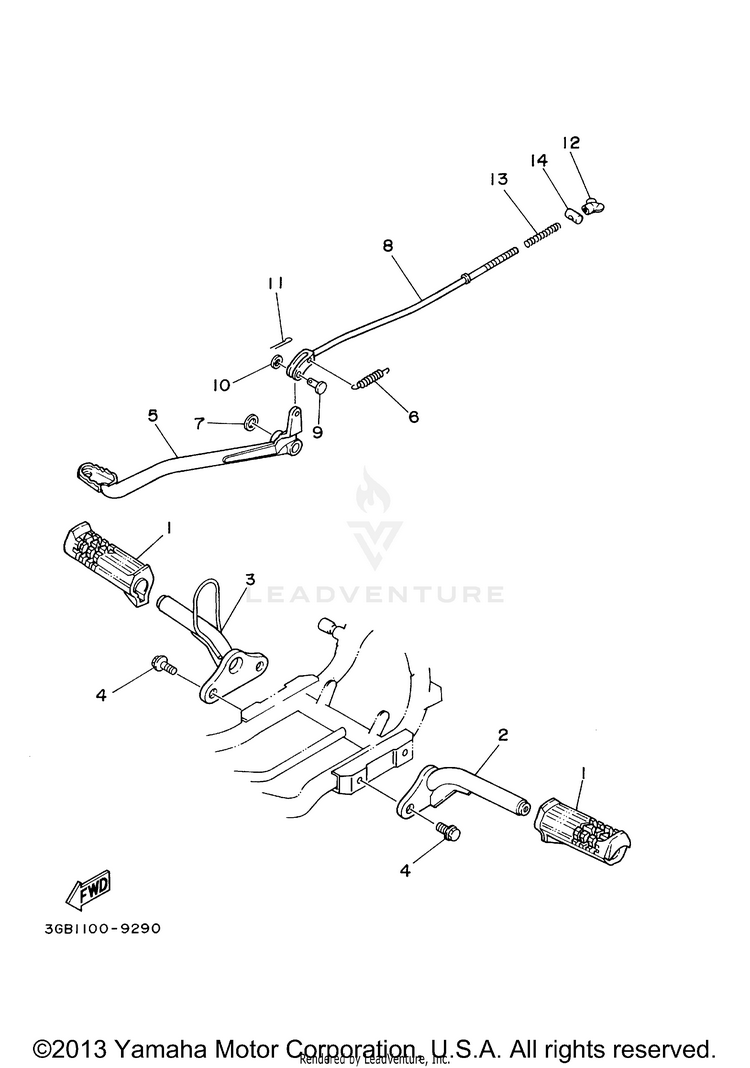

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155X-27413-00-00COVER, FOOTREST$46.99$36.655 In-Stock
23GB-27411-10-00FOOTREST 1$66.99$52.25Usually ships in 7-10 business days
33GB-27421-10-00FOOTREST 2$66.99$52.25Usually ships in 7-10 business days
495817-12020-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
53GB-27211-10-00

(replaces part #
3GB-27211-00-00)

PEDAL, BRAKE$46.99$38.53Usually ships in 7-10 business days
690506-16318-00SPRING, TENSION$11.49$8.963 In-Stock
790201-15797-00WASHER, PLATE$10.49$8.1810+ In-Stock
83GB-27231-00-00ROD, BRAKE$25.99$21.31Usually ships in 7-10 business days
990240-06076-00PIN, CLEVIS$9.49$7.404 In-Stock
1092907-06200-00WASHER$9.49$7.4010+ In-Stock
1191490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
1220E-26343-00-00NUT, ADJUSTING$30.99$24.1710+ In-Stock
1390501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1490249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
