2005 Yamaha TW200 Side Cover OEM Parts Diagram

Submodel TW200 - TW200T1C - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

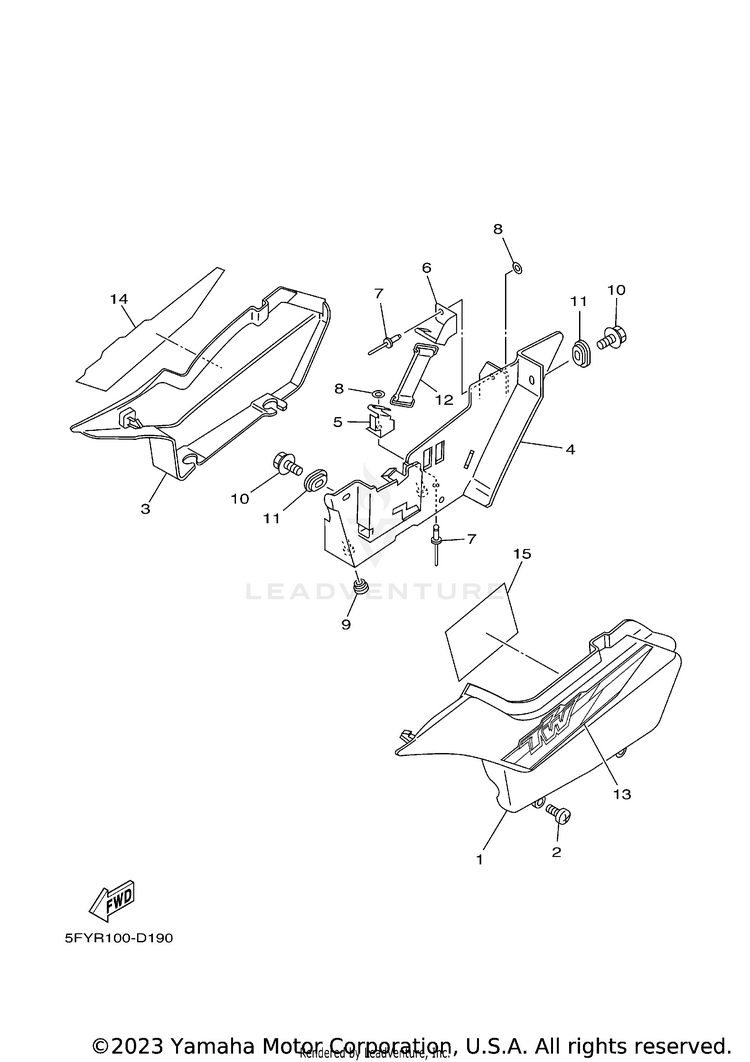

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12YG-21711-00-0XCOVER, SIDE 1 | LGB$119.99$93.59Usually ships in 7-10 business days
290154-05013-00SCREW, BINDING$6.49$5.0610+ In-Stock
32YG-21721-00-0XCOVER, SIDE 2 | LGB$118.99$92.81Usually ships in 7-10 business days
45EK-2177A-00-00BOX$41.99$34.43Usually ships in 7-10 business days
55EK-2175T-00-00BRACKET 1$17.49$14.34Usually ships in 7-10 business days
65EK-2175U-00-00BRACKET 2$16.49$13.52Usually ships in 7-10 business days
790267-40080-00

(replaces part #
90267-40075-00)

RIVET, BLIND$4.35$3.92Usually ships in 7-10 business days
890201-044H9-00

(replaces part #
90201-04018-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
990480-13014-00

(replaces part #
90480-13197-00)

GROMMET$9.49$7.4010+ In-Stock
1090119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
1190480-01401-00

(replaces part #
90480-01141-00)

GROMMET (41Y)$9.49$7.4010+ In-Stock
12116-82131-00-00BAND, BATTERY$34.99$27.292 In-Stock
135FY-2173E-50-00GRAPHIC 1$33.99$27.87Usually ships in 7-10 business days
145FY-2173F-50-00GRAPHIC 2$82.99$64.73Usually ships in 7-10 business days
155FY-2179V-60-00PLATE, EPA 1 (NON CALIFORNIA)$6.49$5.84Usually ships in 7-10 business days
155FY-2179N-60-00PLATE, EPA 2 (CALIFORNIA)$42.99$35.25Usually ships in 7-10 business days
