2005 Yamaha Virago XV250 Frame OEM Parts Diagram

Submodel VIRAGO 250 - XV250TC - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

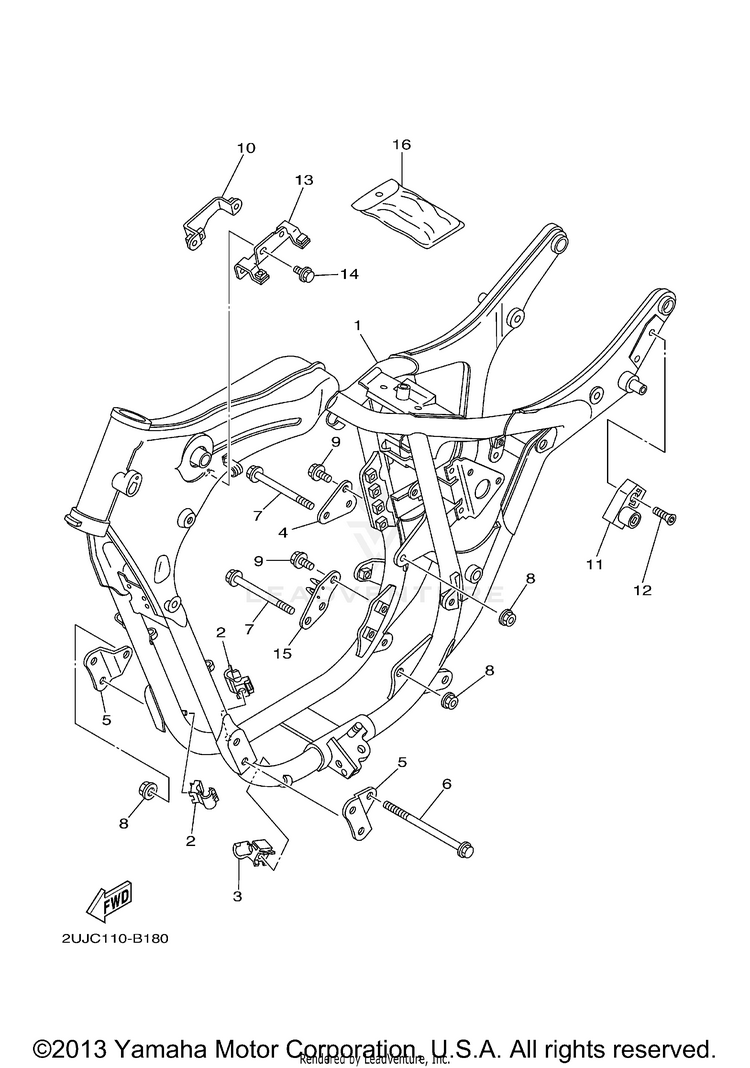

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UJ-21110-20-33FRAME COMP. | YB$649.99$567.89Usually ships in 7-10 business days
290464-05188-00CLAMP$5.49$4.94Usually ships in 7-10 business days
390464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
42UJ-21318-01-00STAY, ENGINE 5$6.49$5.84Usually ships in 7-10 business days
52UJ-21315-00-00STAY, ENGINE 2$17.49$14.34Usually ships in 7-10 business days
695814-08150-00BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
795814-08110-00BOLT, FLANGE$8.49$7.64Usually ships in 7-10 business days
890179-08491-00

(replaces part #
90179-08656-00)

NUT$2.80$2.4110+ In-Stock
995817-08016-00BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
102UJ-21243-00-00PLATE, BRIDGE$9.99$8.99Usually ships in 7-10 business days
1126H-21308-01-00

(replaces part #
26H-21308-00-00)

HELMET HANGER ASSY$89.99$70.19Usually ships in 7-10 business days
1290149-06154-00SCREW$10.49$8.60Usually ships in 7-10 business days
132UJ-2135Y-00-00BRACKET, IGNITION COIL$28.99$23.77Usually ships in 7-10 business days
1495817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
152UJ-21319-00-00STAY, ENGINE 6$15.99$13.11Usually ships in 7-10 business days
162UJ-28100-00-00TOOL KIT$58.99$46.01Usually ships in 7-10 business days
